inference

Inference of the daily and intra-night model of flight speed.
---------- PART 1
Load data
Assess missing value and remove un-reliable data
Figure of data kept
Check speed norm with year and month.
2D Grubb's test to removal outliar
Outliar intra-night: NOT USED
Export daily and intra-night in u and v
Save
---------- PART 2:
Step 1: Mean
Step 2: Variance
Save
---------- PART 3

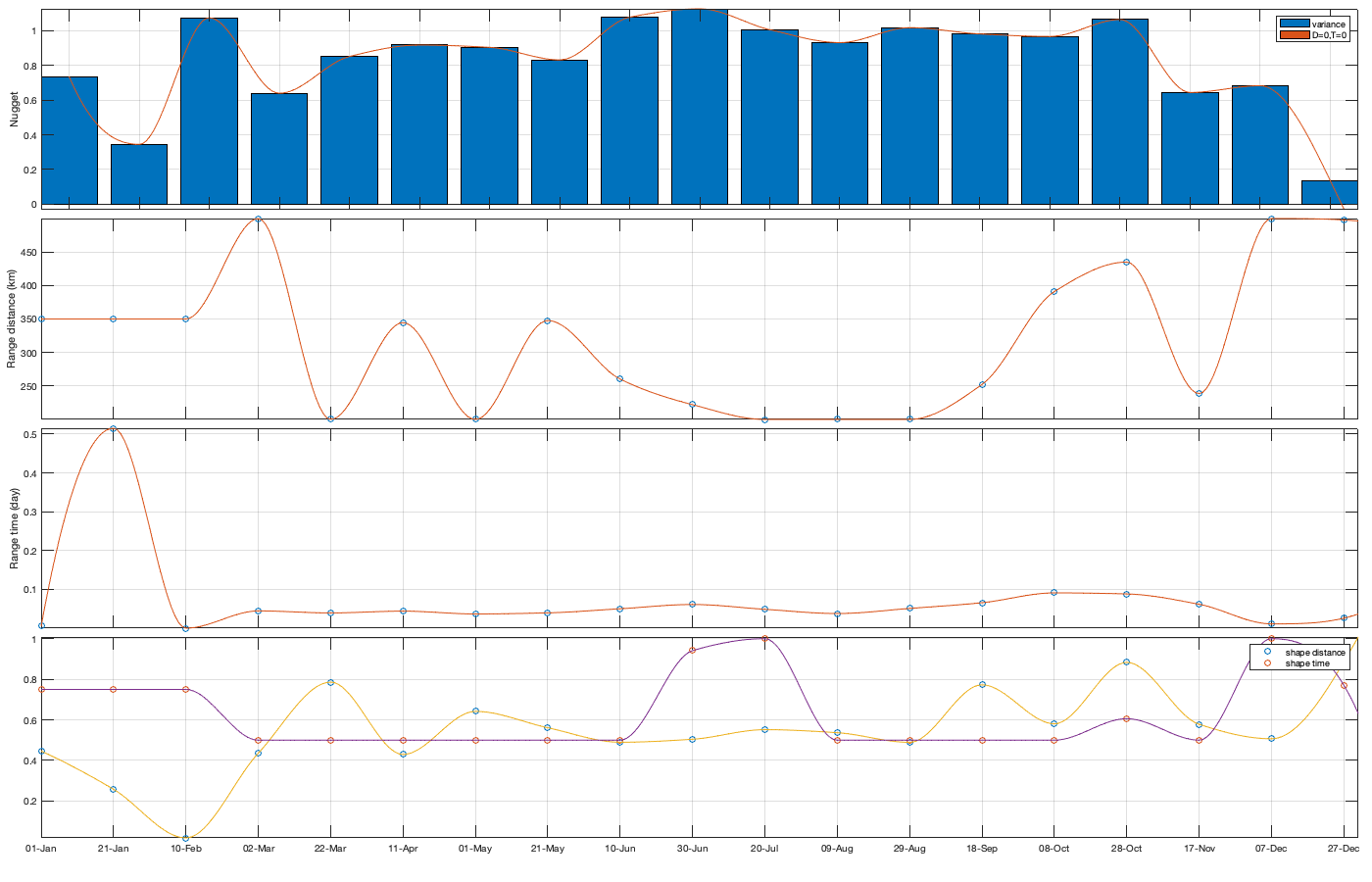

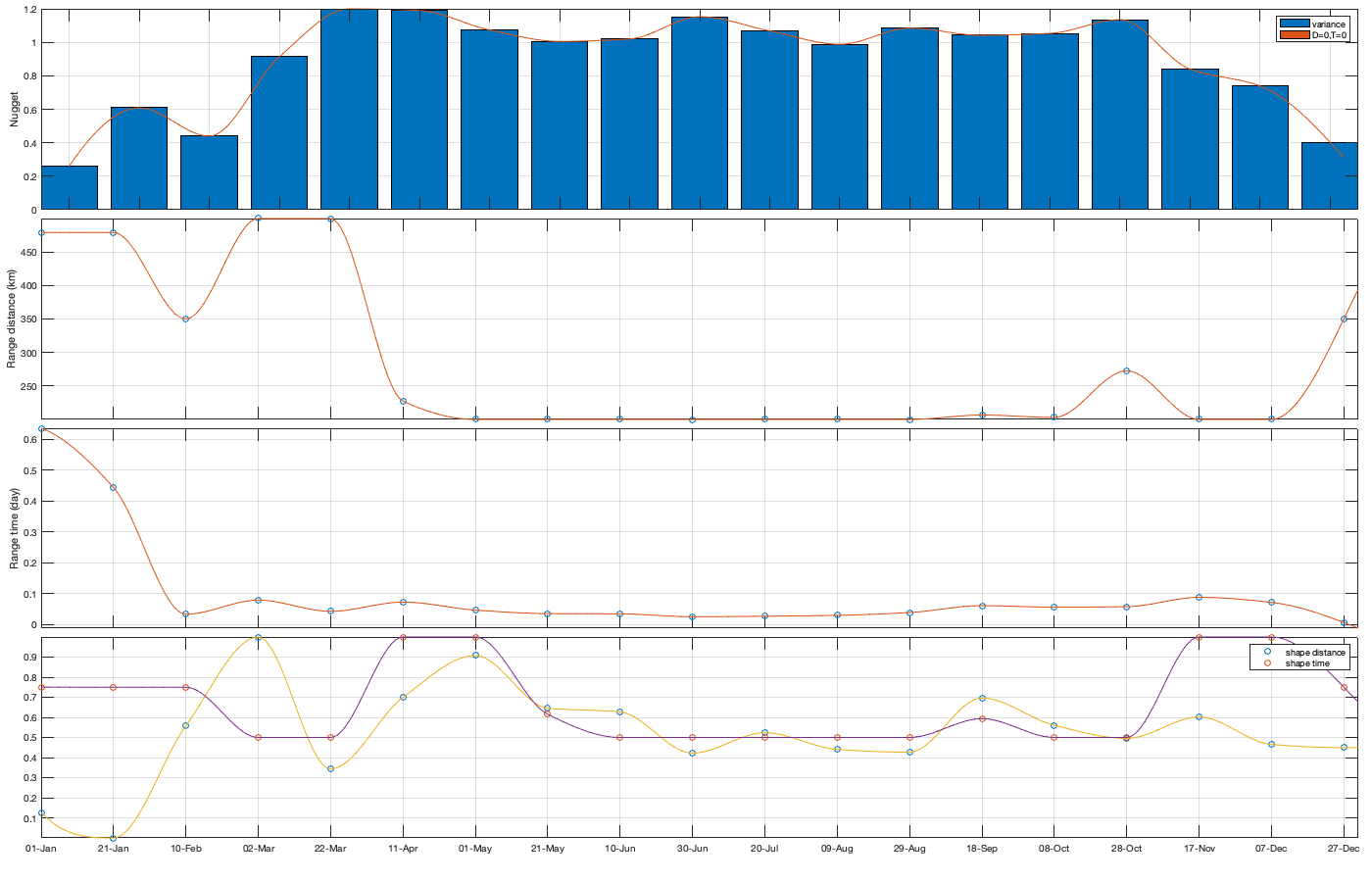

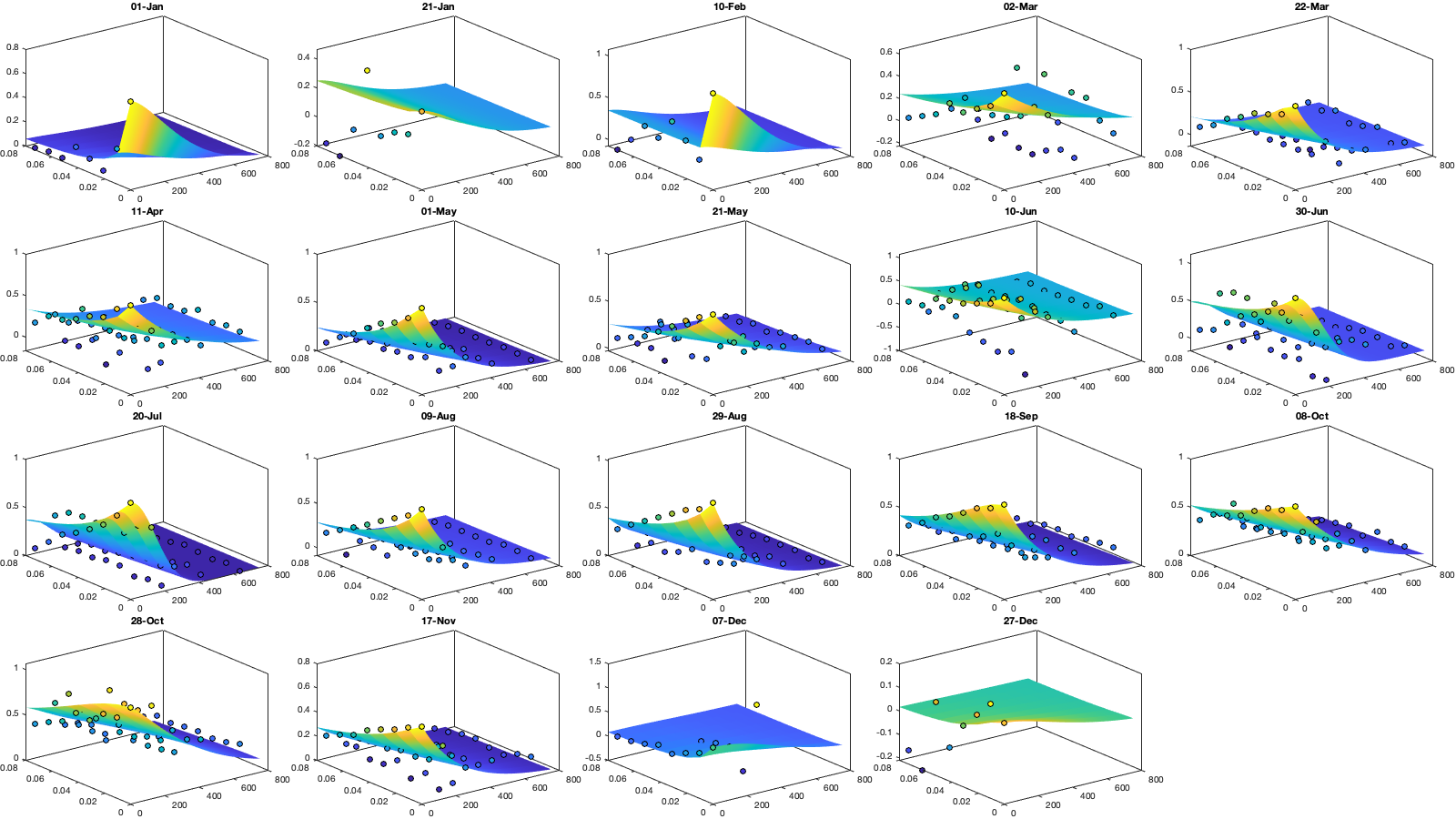

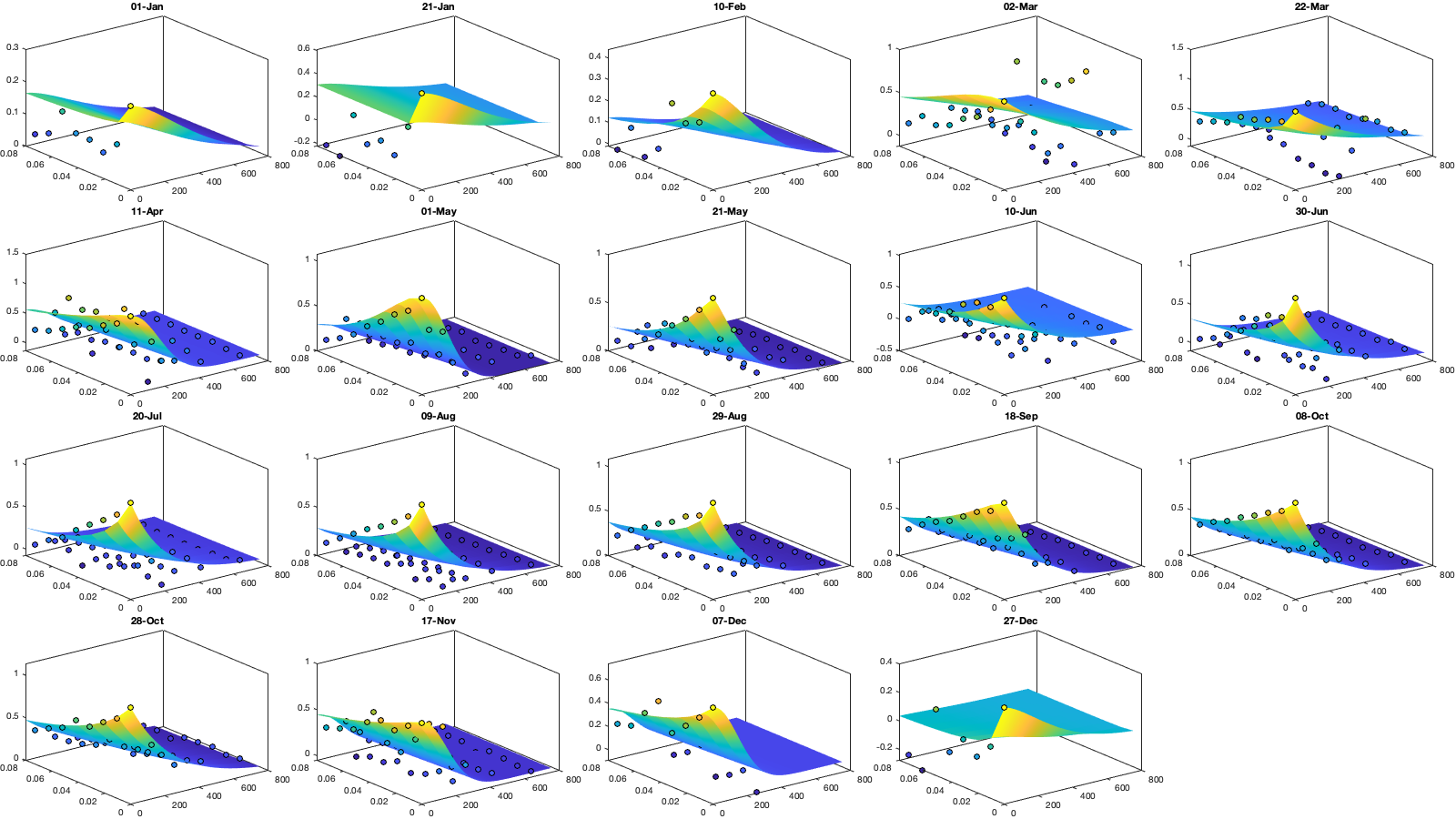

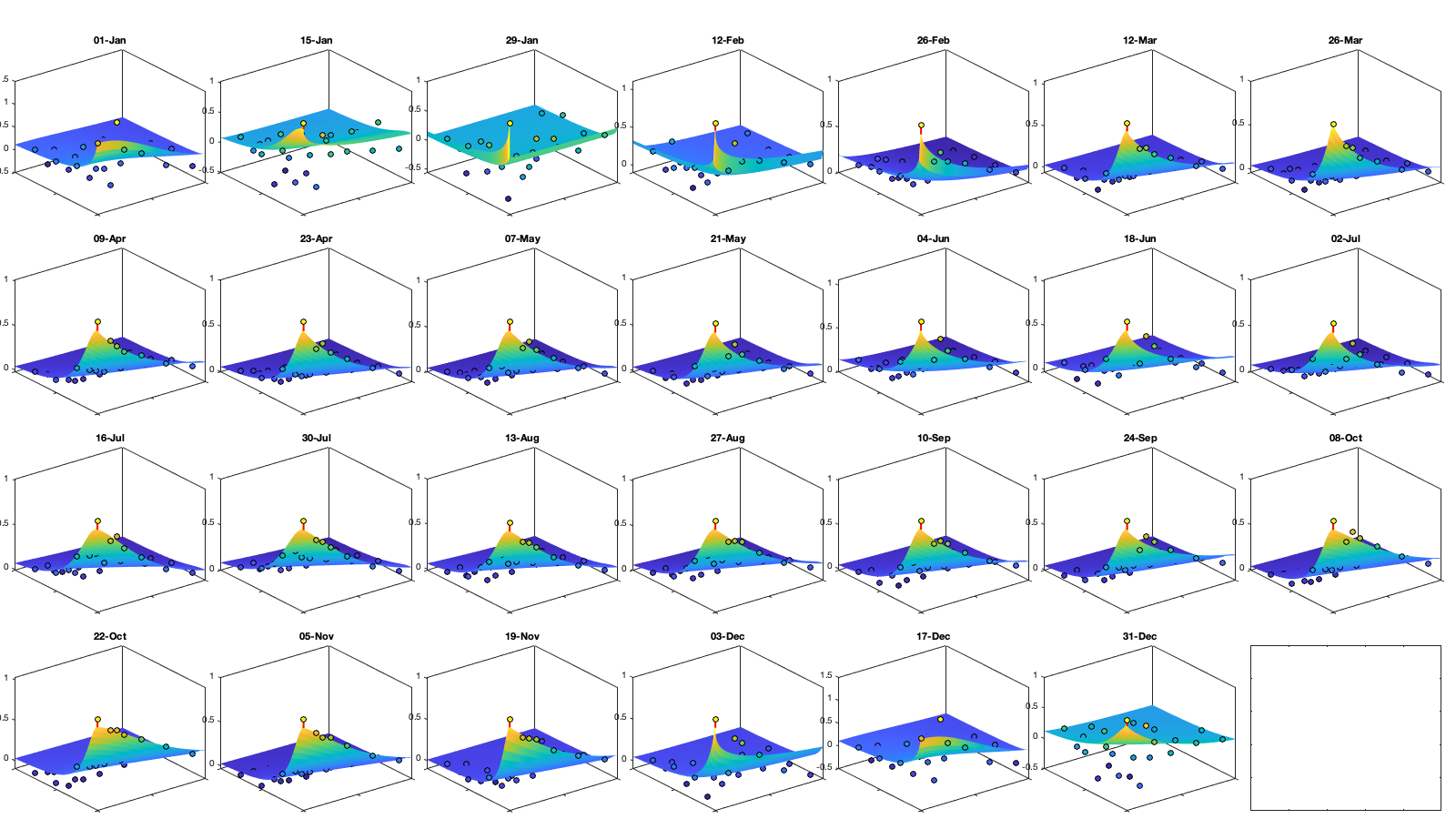

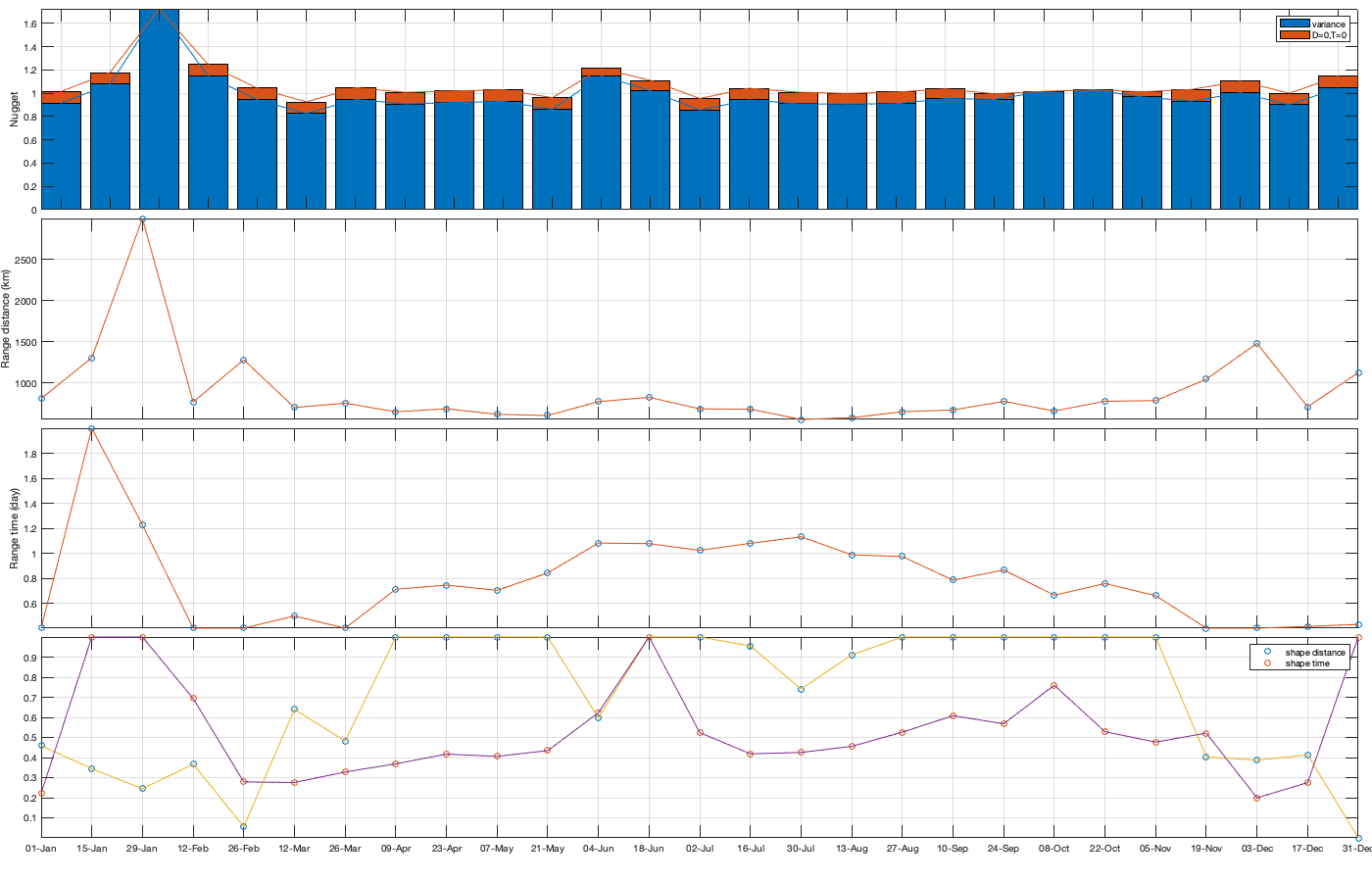

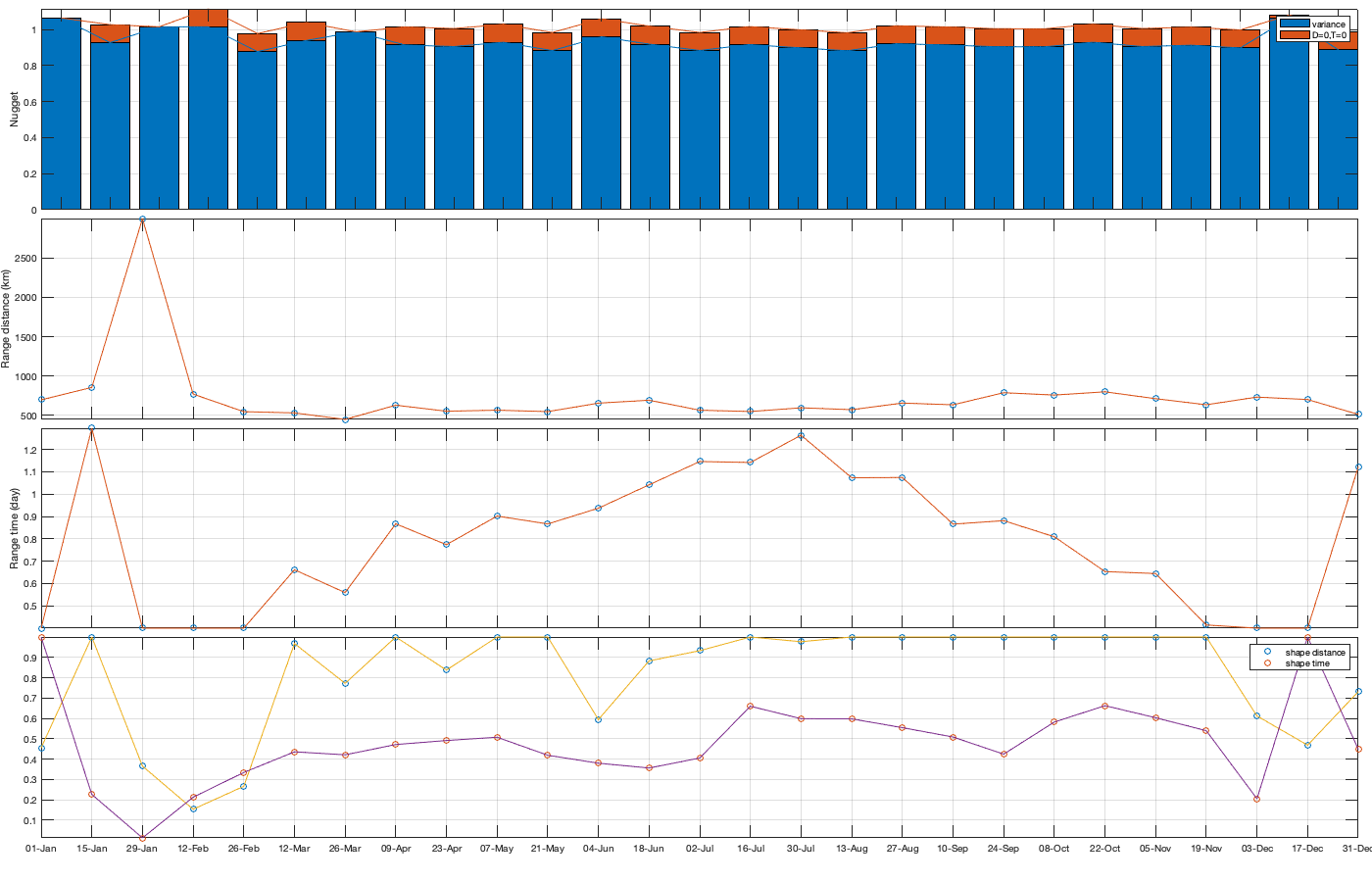

Fit covariance function
save
---------- PART 4

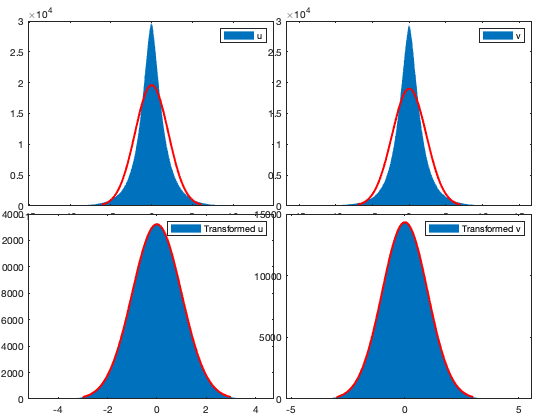

Transformation
Detrend Mean
Detrend Variance
Covariance
save

Inference of the daily and intra-night model of flight speed.

plotit=true;

---------- PART 1

Load data and filter/clean

Load data

cd('/Users/raphael/Library/CloudStorage/Box-Box/BMM-US/')
set(0, 'DefaultAxesBox', 'on');
addpath(genpath('functions'))
% load grid and radar information from density (need to be run first)
load('data/density/inference-trans','radar','g','thr_nnt')
uv = {'u','v'};

% Read vid
% vid = readmatrix('data/vid.csv','NumHeaderLines',1,'TreatAsMissing' ,'NA');
vi.v = readmatrix('data/viv.csv','NumHeaderLines',1,'TreatAsMissing' ,'NA');
vi.u = readmatrix('data/viu.csv','NumHeaderLines',1,'TreatAsMissing' ,'NA');
%viav = readmatrix('data/viav.csv','NumHeaderLines',1,'TreatAsMissing' ,'NA');
%viau = readmatrix('data/viau.csv','NumHeaderLines',1,'TreatAsMissing' ,'NA');


% NNT (nornmalized night time)
NNT = twilightNNT(g.time, radar.lon, radar.lat);
NNT(NNT<thr_nnt(1)|NNT>thr_nnt(2))=nan;

% load the clenned density to filter out untrusted datapoint.
load('data/density/inference-trans.mat','vidTS','trans','vidTS_id')

vid = trans.f_inv(vidTS);

Assess missing value and remove un-reliable data

numel(vi.v)
% 138M datapoint

sum(~isnan(NNT(:)))
% 62M during the night

sum(~isnan(NNT(:))&~isnan(vi.v(:)))
% 48M during the night with data

% There is
sum(~isnan(NNT(:))&sqrt(vi.u(:).^2+vi.v(:).^2)>=.1)
% 44M during the night with speed above .1 m/s and density

% Speed where the density is less than 2 bird/km^2 seems to be quite off,
% particularly in the winter. A threahodl of 5 would remove a lot of
% datapoint... not obvious threadhold. See figure below
sum(~isnan(NNT(:))&sqrt(vi.u(:).^2+vi.v(:).^2)>=.1& vid(:)>10)
% 11M during the night with speed above .1 m/s and density above 10 bird/km^2

% keep a copy for figure comparison
vi0=vi;

% ignore data if less than trans.thr_T bird/km^2, or if average speed is less than .1
id = ~vidTS_id| sqrt(vi.u.^2+vi.v.^2)<.1;
vi.v(id)=nan;
vi.u(id)=nan;


% Compute the angle and norm of the speed vectors
via = angle(vi.u + vi.v*1i);
vin = abs(vi.u + vi.v*1i);

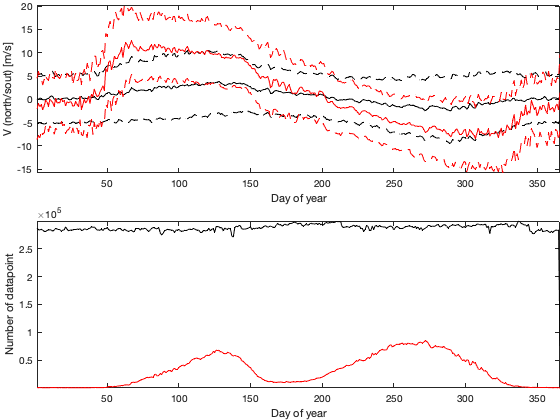

Figure of data kept

if plotit
    A=splitapply(@(x) mean(x,'all','omitnan'),vi.v,g.time_doy);
    B=splitapply(@(x) std(x,[],'all','omitnan'),vi.v,g.time_doy);
    C=splitapply(@(x) sum(~isnan(x(:))),vi.v,g.time_doy);
    A0=splitapply(@(x) mean(x,'all','omitnan'),vi0.v,g.time_doy);
    B0=splitapply(@(x) std(x,[],'all','omitnan'),vi0.v,g.time_doy);
    C0=splitapply(@(x) sum(~isnan(x(:))),vi0.v,g.time_doy);

    figure; tiledlayout('flow','TileSpacing','tight','Padding','tight')
    nexttile; hold on;
    plot(A0,'-k'); plot(A0+B0,'--k'); plot(A0-B0,'--k');
    plot(A,'-r'); plot(A+B,'--r'); plot(A-B,'--r');
    ylim([-15 15]); ylabel('V (north/sout) [m/s]'); xlabel('Day of year'); axis tight;
    nexttile;  hold on;  plot(C0,'k'); plot(C,'r');
    xlabel('Day of year'); ylabel('Number of datapoint'); axis tight;

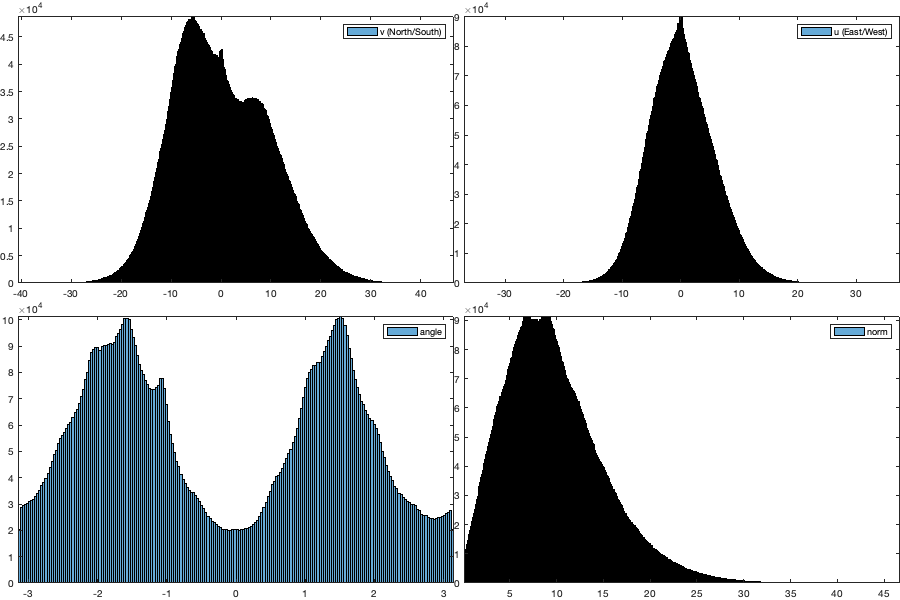

    figure('position',[0 0 900 600]);
    tiledlayout(2,2,'TileSpacing','tight','Padding','tight')
    nexttile; histogram((vi.v(:))); legend('v (North/South)'); axis tight;
    nexttile; histogram(vi.u(:)); legend('u (East/West)'); axis tight;
    nexttile; histogram((via(:))); legend('angle'); axis tight;
    nexttile; histogram(vin(:)); legend('norm'); axis tight;

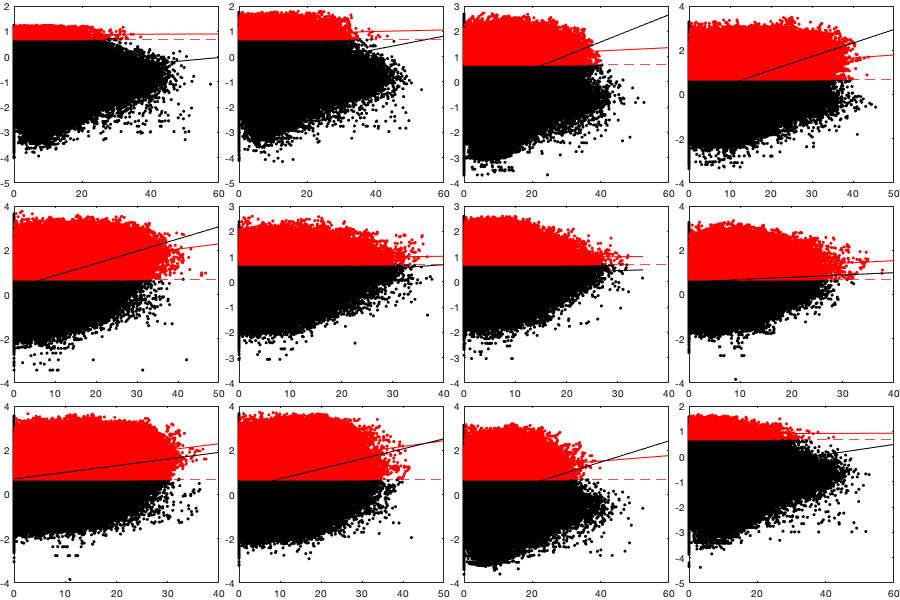

    % Relationship density speed
    vin0 = abs(vi0.u + vi0.v*1i);
    figure('position',[0 0 900 600]); tiledlayout('flow','TileSpacing','tight','Padding','tight')
    for i_m=1:12
        id=month(g.time)==i_m;
        nexttile;
        id2= id & vidTS<20;
        plot(vin0(id2),vidTS(id2),'.k'); hold on;
        plot(vin(id2),vidTS(id2),'.r')
        l=lsline; l(1).Color='k'; l(1).Color='r';
        yline(trans.thr_T,'--r')
    end

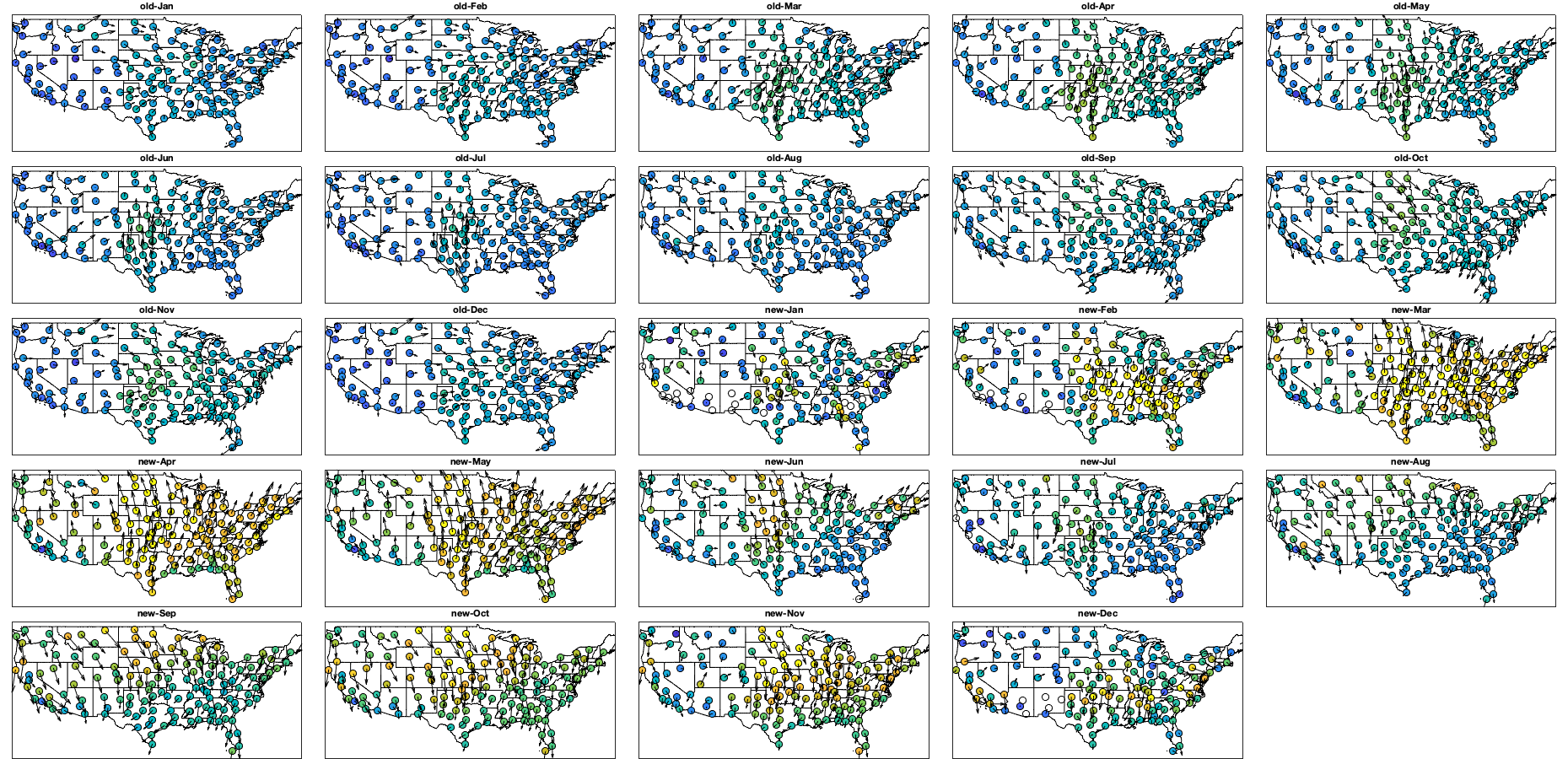

    figure('position',[0 0 1900 900]); tiledlayout('flow','TileSpacing','tight','Padding','tight')
    for i_m=1:24
        nexttile;
        if i_m<13
            tmp = vi0;
            title(['old-' datestr(i_m*30,'mmm')])
        else
            i_m=i_m-12;
            title(['new-' datestr(i_m*30,'mmm')])
            tmp=vi;
        end
        tmp2=sqrt(tmp.u.^2+ tmp.v.^2);
        id=month(g.time)==i_m;
        borders('states','k');
        scatter(radar.lon,radar.lat,70,nanmean(tmp2(id,:)),'o','filled','MarkerEdgeColor','k');
        quiver(radar.lon,radar.lat,nanmean(tmp.u(id,:))',nanmean(tmp.v(id,:))','k')
        axis equal; axis([-125 -68 23 50]); set(gca,'ydir','normal'); xticks([]);  yticks([]); caxis([0 15])
        % title(num2str(sum(sum(tmp2(id,:)>0))))
    end

end

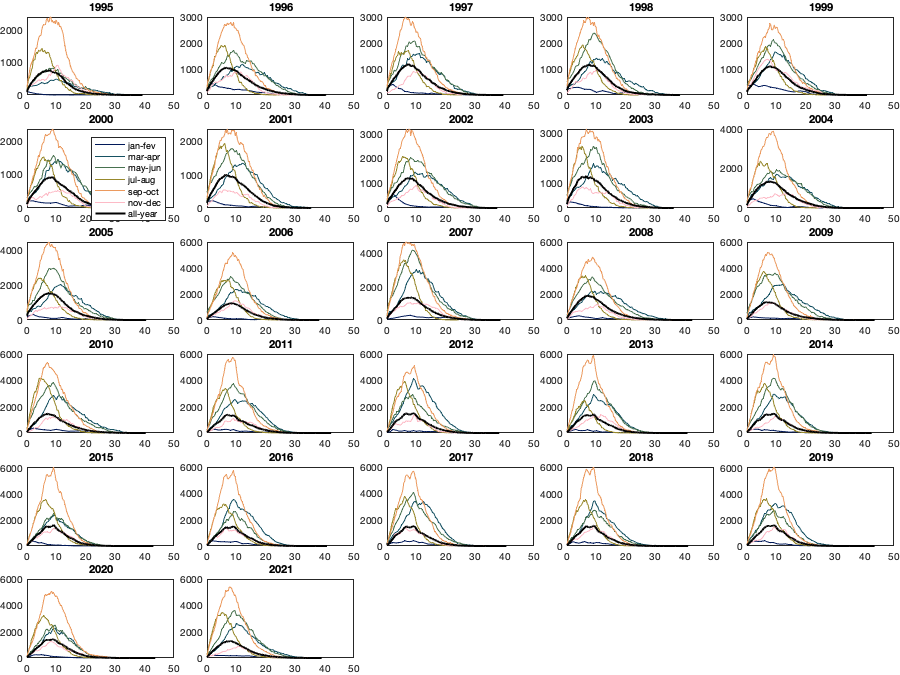

Check speed norm with year and month.

if plotit
    figure('position',[0 0 900 675]);tiledlayout('flow','TileSpacing','tight','Padding','tight')
    col = crameri('batlow',12);
    for i_y=1995:2021
        nexttile;
        % histogram(vin(year(g.time)==i_y,:))
        hold on;
        for i_m=1:2:11
            [N,edges] = histcounts(vin(year(g.time)==i_y&(month(g.time)==i_m|month(g.time)==(i_m+1)),:));
            plot(edges(1:end-1),N,'color',col(i_m,:))
        end
        [N,edges] = histcounts(vin(year(g.time)==i_y,:));
        plot(edges(1:end-1),N/6,'-k','linewidth',2)
        xlim([0 50])
        title(i_y)
        if i_y==2000
            legend({'jan-fev','mar-apr','may-jun','jul-aug','sep-oct','nov-dec','all-year'})
        end
    end
end

2D Grubb's test to removal outliar

viuv_m=nan(2,366); viuv_s=nan(2,366); viuv_n=nan(1,366);
for i_d=1:366
    viuv_m(:,i_d) = [mean(vi.u(g.time_doy==i_d,:),'all','omitnan') mean(vi.v(g.time_doy==i_d,:),'all','omitnan')];
    viuv_s(:,i_d) = [std(vi.u(g.time_doy==i_d,:),[],'all','omitnan') std(vi.v(g.time_doy==i_d,:),[],'all','omitnan')];
    % GMModel{i_d} = fitgmdist([reshape(vi.u(g.time_doy==i_d,:),[],1) reshape(vi.v(g.time_doy==i_d,:),[],1)],1);
    viuv_n(i_d) = sum(~isnan(vi.u(g.time_doy==i_d,:)),'all');
end

X=[viuv_m ; viuv_s]';
tmp=14;
X_smooth = movmean([X(end-tmp:end,:) ; X ; X(1:tmp,:)],20);
X_smooth = X_smooth((tmp+2):end-tmp,:);

% compute the corresponding threashold per day of year and alpha
alpha=.5;
tval = tinv(alpha./viuv_n/2,repmat(viuv_n-2,1,numel(alpha))).^2;
G = (viuv_n-1)./sqrt(viuv_n) .* sqrt(tval./(viuv_n-2+tval));

viunorm=(vi.u - X_smooth(g.time_doy,1)) ./ X_smooth(g.time_doy,3);
vivnorm=(vi.v - X_smooth(g.time_doy,2)) ./ X_smooth(g.time_doy,4);
tmp = sqrt( viunorm.^2 + vivnorm.^2 );

id_rm = tmp>G(g.time_doy)';

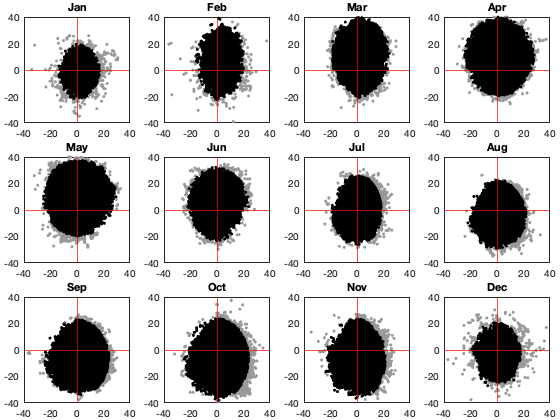

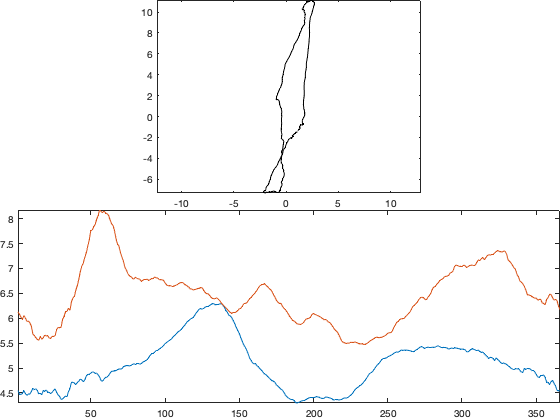

if plotit
    figure; tiledlayout('flow','TileSpacing','tight','Padding','tight')
    nexttile; plot(X_smooth(:,1),X_smooth(:,2),'-k'); axis equal
    nexttile; plot(X_smooth(:,3:4)); axis tight;

    figure; tiledlayout('flow','TileSpacing','tight','Padding','tight')
    for i_m=1:12
        nexttile; grid on
        id=month(g.time)==i_m;
        plot(vi.u(id,:),vi.v(id,:),'.','color',[.6 .6 .6]); hold on;
        plot(vi.u(id&~id_rm),vi.v(id&~id_rm),'.k');
        xline(0,'r'); yline(0,'r')
        % ksdensity([reshape(vi.u(id,:),[],1) reshape(vi.v(id,:),[],1)],'PlotFcn','contour')
        axis equal; axis([-40 40 -40 40]); title(datestr(i_m*30,'mmm'))
    end

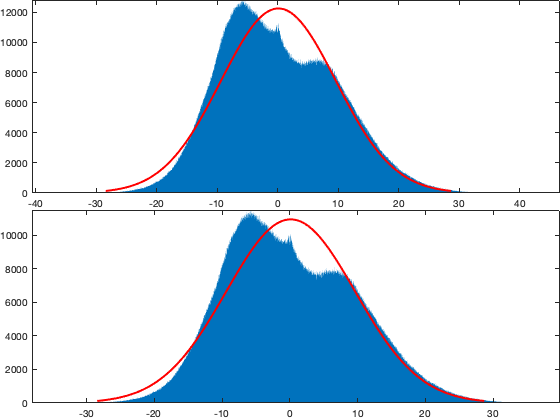

    figure;tiledlayout('flow','TileSpacing','tight','Padding','tight')
    nexttile; histfit(vi.v(:)); axis tight;
    nexttile; histfit(reshape(vi.v(~id_rm),1,[])); axis tight;
end

vi.u(id_rm)=nan;
vi.v(id_rm)=nan;

Outliar intra-night: NOT USED

Eliminate datapoint with intra-night residual outside a gaussian distribution. This require an iterative process as the intra-night residual is computed with the mean of the value.

for i_uv=1:2
    cond=true;
    while cond
        % Delete value less than 5 datapoint (1hr)
        sumisnand = splitapply(@(x) sum(~isnan(x)),vi.(uv{i_uv}),g.day_id);
        tmp = sumisnand<=4;
        vi.(uv{i_uv})(tmp(g.day_id,:))=nan;
        vi.(uv{-i_uv+3})(tmp(g.day_id,:))=nan;

        summean = splitapply(@(x) mean(x,'omitnan'),vi.(uv{i_uv}),g.day_id);
        sumres = vi.(uv{i_uv})-summean(g.day_id,:);
        stdres = splitapply(@(x) std(x,[],'all','omitnan'), sumres, g.time_doy);
        tmp=14;
        stdres_smooth = movmean([stdres(end-tmp:end,:) ; stdres ; stdres(1:tmp,:)],20);
        stdres_smooth = stdres_smooth((tmp+2):end-tmp,:);

        n = sum(~isnan(sumres(:)));
        alpha=.05;
        tval = tinv(alpha/n/2,n-2).^2;
        G = (n-1)/sqrt(n) * sqrt(tval./(n-2+tval));
        thr = abs(G*stdres_smooth);

        id_rm = abs(sumres)>thr(g.time_doy);

        if sum(id_rm(:))==0
            cond = false;
        end
        disp(sum(id_rm(:)))

        % Apply
        vi.(uv{i_uv})(id_rm)=nan;
        vi.(uv{-i_uv+3})(id_rm)=nan;
    end
end
% sum(~isnan(vi.v(:)))
% 13'975'228

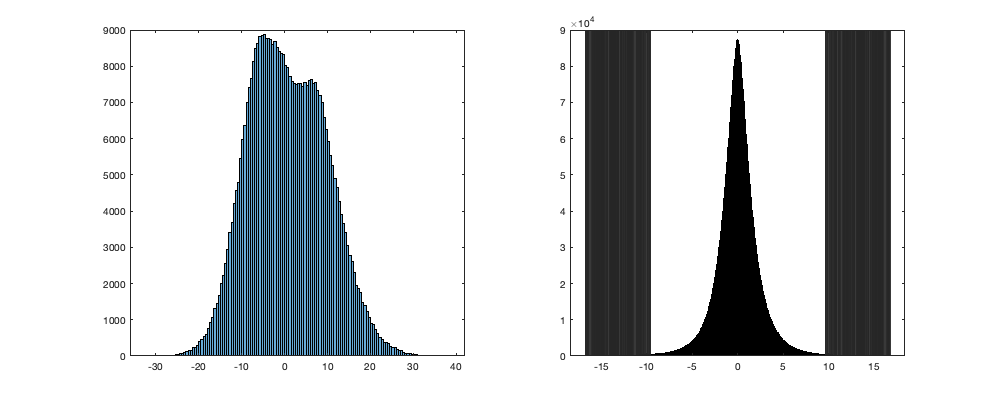

if plotit
    figure('position',[0 0 1000 400]);
    subplot(1,2,1); histogram(summean)
    subplot(1,2,2); histogram(sumres); xline(thr); xline(-thr)
end

% sum(~isnan(vin(:)))
% 13'842'763

Export daily and intra-night in u and v

% Reproject the uv component
% NOT USED: with 45° to not be aligned with the direction of migration.
% vic.u = vin.*cos(via);%-deg2rad(45));
% vic.v = vin.*sin(via);%-deg2rad(45));

for i_uv=1:numel(uv)
    vicd.(uv{i_uv}) = splitapply(@(x) mean(x,'omitnan'),vi.(uv{i_uv}),g.day_id);
    vici.(uv{i_uv}) = vi.(uv{i_uv})-vicd.(uv{i_uv})(g.day_id,:);
end

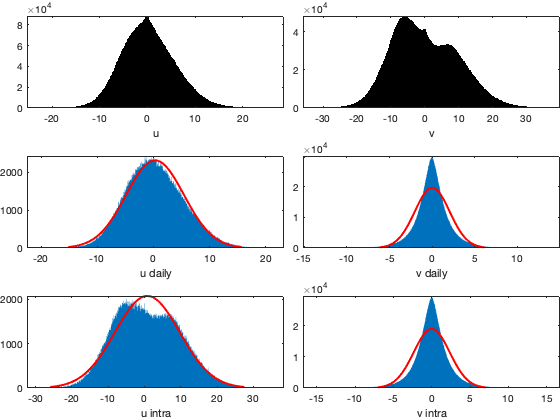

figure; tiledlayout('flow','TileSpacing','tight','Padding','tight')
nexttile; histogram(vi.(uv{1})); xlabel('u');axis tight;
nexttile; histogram(vi.(uv{2})); xlabel('v');axis tight;
nexttile; histfit(vicd.(uv{1})(:)); xlabel('u daily');axis tight;
nexttile; histfit(vici.(uv{1})(:)); xlabel('v daily');axis tight;
nexttile; histfit(vicd.(uv{2})(:)); xlabel('u intra');axis tight;
nexttile; histfit(vici.(uv{2})(:)); xlabel('v intra');axis tight;

Save

save('data/speed/inference-trans.mat','vici','vicd','uv','-v7.3')

---------- PART 2:

Detrend daily part

load('data/density/inference-trans','radar','g')
load('data/speed/inference-trans.mat','vicd','uv')

Step 1: Mean

ddoy_g = 14;
doy_g=1:ddoy_g:366;

for i_uv=1:numel(uv)
    % Initialize variable
    victd_mean_doy_radar.(uv{i_uv})=nan(numel(doy_g),height(radar));
    victd_trend.(['sf_mean_' uv{i_uv}]) = cell(numel(doy_g),1);

    for i_doy = 1:numel(doy_g)
        % select a windows of 2* ddoy_g accounting for cyclical year
        id = abs(mod(g.day_doy+180-doy_g(i_doy),366)-180)<(ddoy_g*3);

        % compute the average and std per period and radar
        victd_mean_doy_radar.(uv{i_uv})(i_doy,:) = mean(vicd.(uv{i_uv})(id,:),'omitnan');
        w = sum(~isnan(vicd.(uv{i_uv})(id,:)));

        % Fit a lowess function
        id=~isnan(victd_mean_doy_radar.(uv{i_uv})(i_doy,:));
        victd_trend.(['sf_mean_' uv{i_uv}]){i_doy} = fit([radar.lon(id),radar.lat(id)],victd_mean_doy_radar.(uv{i_uv})(i_doy,id)' ,'lowess','weights',w(id));
    end
end

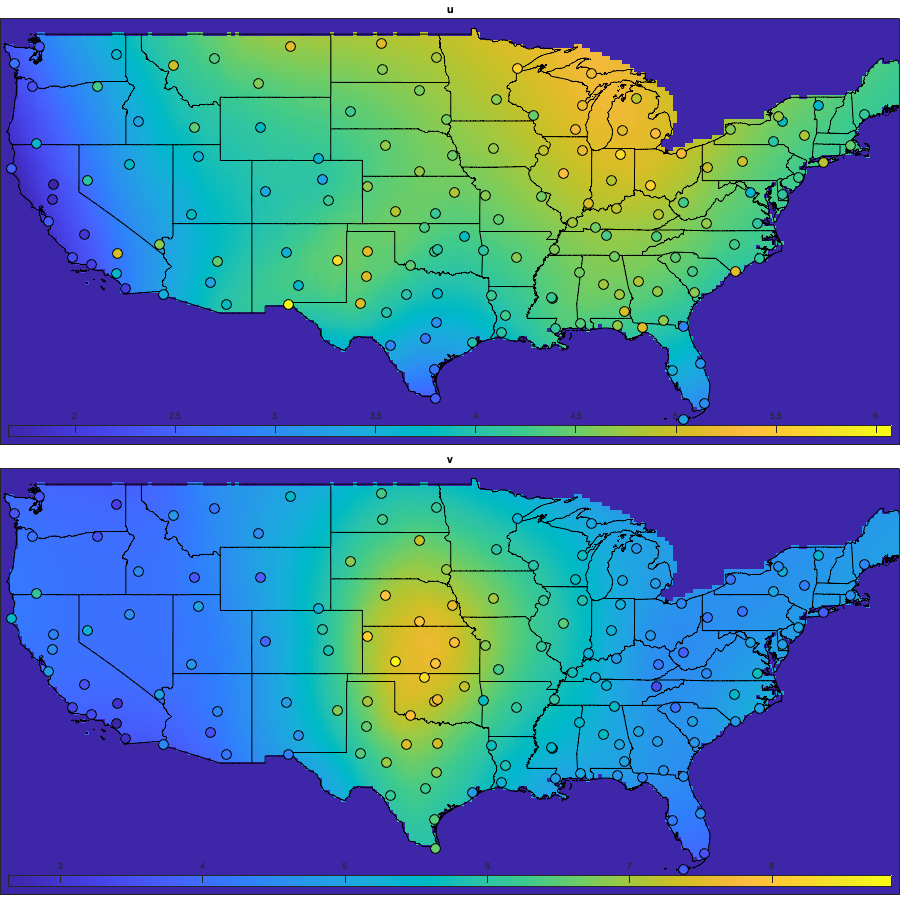

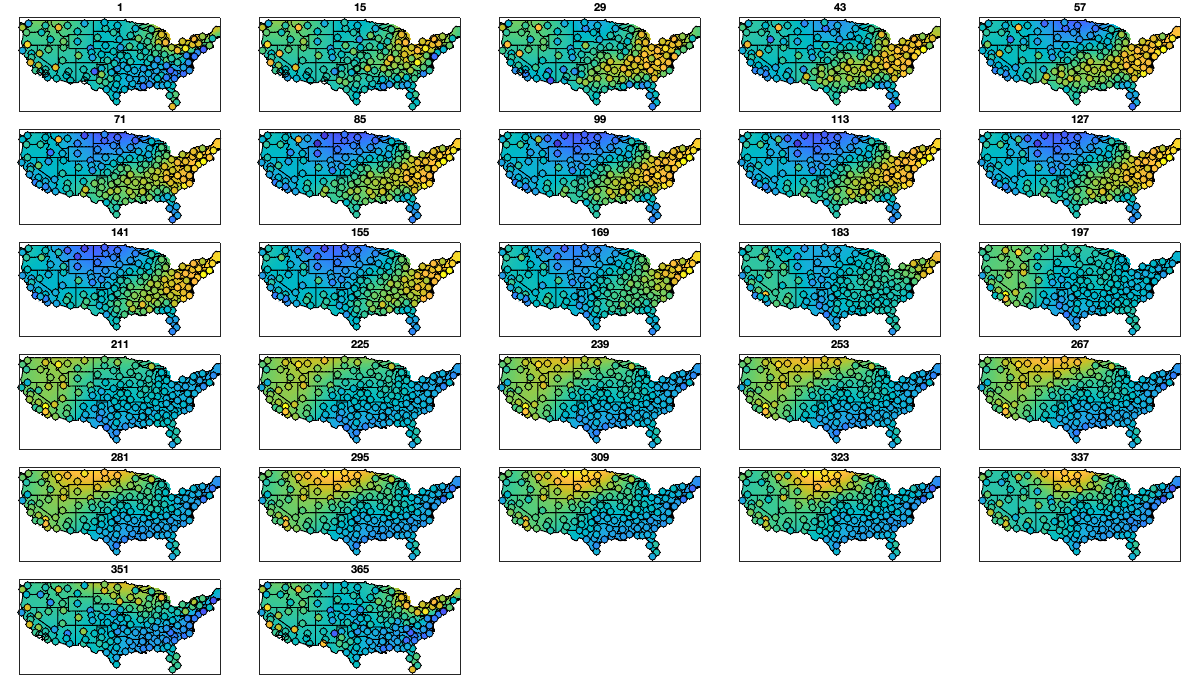

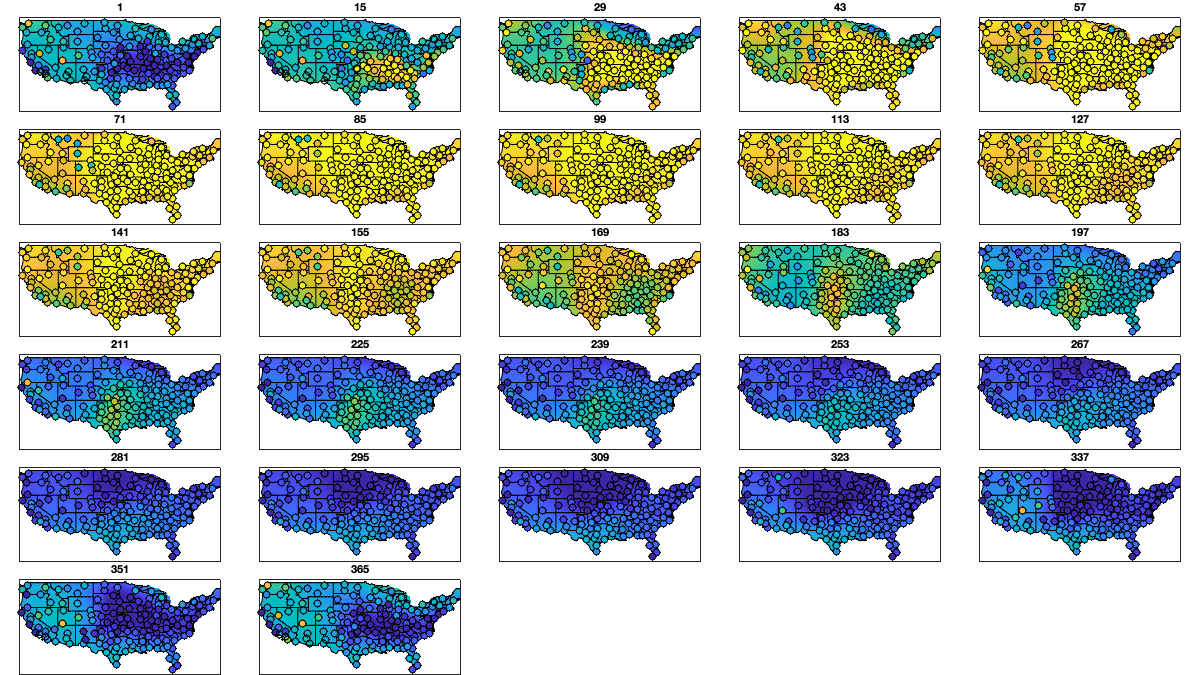

% Visualize the fit
if plotit
    for i_uv=1:2
        figure('position',[0 0 1200 675]); tiledlayout('flow','TileSpacing','tight','Padding','tight')
        for i_doy = 1:numel(doy_g)
            nexttile;
            tmp = reshape(victd_trend.(['sf_mean_' uv{i_uv}]){i_doy}([g.LON(:) g.LAT(:)]),size(g.LAT));
            tmp(g.mask_water)=nan;
            imagesc(g.lon,g.lat,tmp, alphadata=~isnan(tmp))
            borders('states','k');
            scatter(radar.lon,radar.lat,50,victd_mean_doy_radar.(uv{i_uv})(i_doy,:),'o','filled','MarkerEdgeColor','k');
            caxis([-10 10]); axis equal; axis([-125 -68 23 50]); title(doy_g(i_doy)); set(gca,'ydir','normal'); xticks([]);  yticks([])
        end
    end
end

% Compute the residual
for i_uv=1:numel(uv)
    % First, compute for each period-radar
    victd_mean_doy_radar_t.(uv{i_uv})=nan(numel(doy_g),height(radar));
    for i_doy = 1:numel(doy_g)
        victd_mean_doy_radar_t.(uv{i_uv})(i_doy,:)=victd_trend.(['sf_mean_' uv{i_uv}]){i_doy}([radar.lon,radar.lat]);
    end

    % Then, interpolate the value in between
    victd1.(uv{i_uv})=nan(size(vicd.(uv{i_uv})));
    for i_r=1:height(radar)
        victd1.(uv{i_uv})(:,i_r) = vicd.(uv{i_uv})(:,i_r)-interp1(doy_g,victd_mean_doy_radar_t.(uv{i_uv})(:,i_r), g.day_doy,'pchip');
    end
end

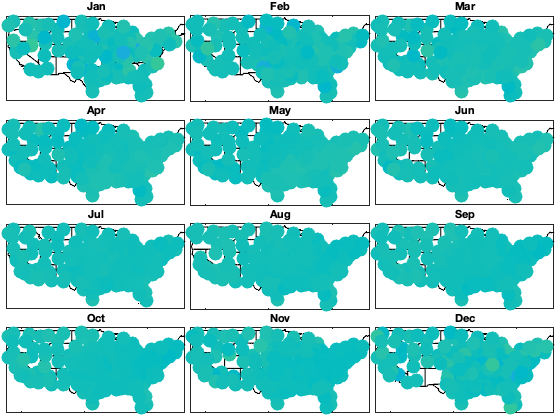

% Check residual per month
% i_uv=1;
% figure('position',[0 0 1200 675]);
% tiledlayout('flow','TileSpacing','tight','Padding','tight')
% for i_m=1:12
%     axes(ha(i_m)); hold on; title(datestr(datetime(1,i_m,1),'mmm'));
%     borders('states','k');
%     scatter(radar.lon,radar.lat,200,nanmean(victd1.(uv{i_uv})(month(g.day)==i_m,:)),'o','filled')
%     axis equal; axis([-125 -68 23 50]); caxis([-1 1])
% end

Step 2: Variance

% Spatial
for i_uv=1:numel(uv)
    w = sum(~isnan(victd1.(uv{i_uv})));
    victd_trend.(['sf_std_' uv{i_uv}]) = fit([radar.lon,radar.lat],std(victd1.(uv{i_uv}),'omitnan')','lowess','weight',w);
end

% Visualize the fit
if plotit
    figure('position',[0 0 900 900]);
    tiledlayout('flow','TileSpacing','tight','Padding','tight')
    for i_uv=1:numel(uv)
        nexttile;
        tmp = reshape(victd_trend.(['sf_std_' uv{i_uv}])([g.LON(:) g.LAT(:)]),size(g.LAT));
        tmp(g.mask_water)=nan;
        imagesc(g.lon,g.lat,tmp)
        borders('states','k');
        scatter(radar.lon,radar.lat,100,std(victd1.(uv{i_uv}),'omitnan'),'o','filled','MarkerEdgeColor','k');
        axis equal; axis([-125 -68 23 50]); title(uv{i_uv}); set(gca,'ydir','normal'); xticks([]);  yticks([])
        colorbar('south'); %caxis([2 10]);
    end
end

% Compute the residual
for i_uv=1:numel(uv)
    victd2.(uv{i_uv}) = victd1.(uv{i_uv}) ./ victd_trend.(['sf_std_' uv{i_uv}])([radar.lon,radar.lat])';
end

% Check residual
% figure('position',[0 0 675 675]);
% tiledlayout('flow','TileSpacing','tight','Padding','tight')
% for i_uv=1:numel(uv)
%     nexttile
%     borders('states','k');
%     scatter(radar.lon,radar.lat,100,std(victd2.(uv{i_uv}),'omitnan'),'o','filled','MarkerEdgeColor','k');
%     caxis([0 2]); axis equal; axis([-125 -68 23 50]); title(uv{i_uv}); set(gca,'ydir','normal'); xticks([]);  yticks([])
% end


% Temporal
for i_uv=1:numel(uv)
    tmp = splitapply(@(x) std(x,[],'all','omitnan'),victd2.(uv{i_uv}),g.day_doy);
    tmp2 = movmean([tmp(end-50:end) ; tmp ; tmp(1:50)],30);
    victd_trend.(['t_std_' uv{i_uv}]) = tmp2(52:(end-50));
end

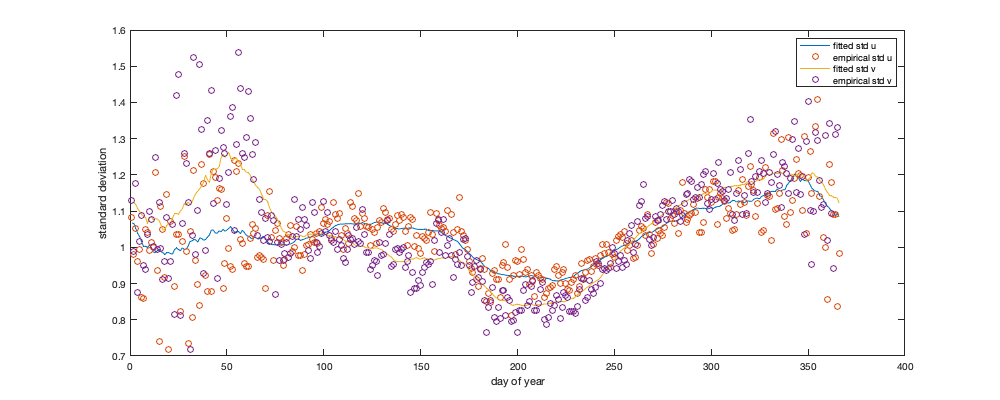

% Illustration
if plotit
    figure('position',[0 0 1000 400]); hold on;
    for i_uv=1:numel(uv)
        plot(victd_trend.(['t_std_' uv{i_uv}]));
        plot(splitapply(@(x) std(x,[],'all','omitnan'),victd2.(uv{i_uv}),g.day_doy),'o')
    end
    xlabel('day of year'); ylabel('standard deviation'); legend({'fitted std u','empirical std u', 'fitted std v','empirical std v'})
end

% remove trend
for i_uv=1:numel(uv)
    victd3.(uv{i_uv}) = victd2.(uv{i_uv}) ./ victd_trend.(['t_std_' uv{i_uv}])(g.day_doy);
end

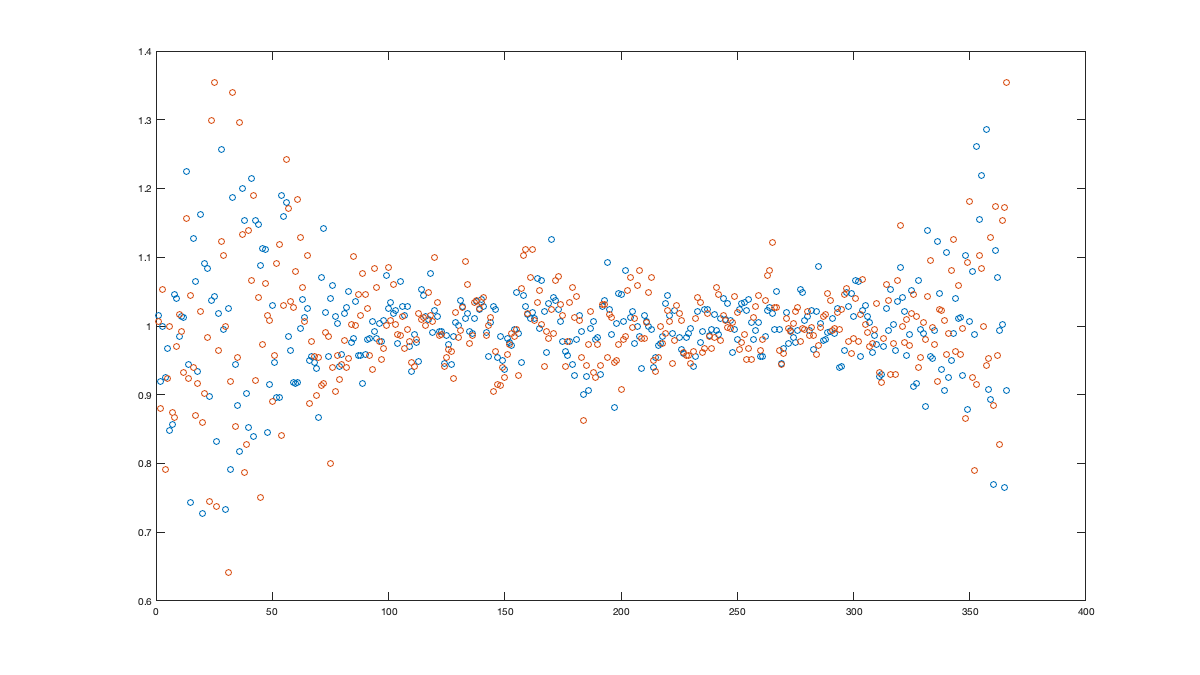

if plotit
    figure('position',[0 0 1200 675]); hold on;
    for i_uv=1:numel(uv)
        plot(splitapply(@(x) std(x,[],'all','omitnan'),victd3.(uv{i_uv}),g.day_doy),'o')
    end
end

Save

victddt=victd3;

---------- PART 3

Covariance of daily average

Fit covariance function

Dtime=squareform(pdist(datenum(g.day)));
Ddist=squareform(pdist([radar.lat radar.lon],@lldistkm));

% Set empirical duration threadhosld
dcov.d=[0 1 150 200 300 500 750 1000];
dcov.t=[0 1 2 3 4];

[dcov.D,dcov.T]=meshgrid(dcov.d(1:end-1)+diff(dcov.d)/2,dcov.t(1:end-1)+diff(dcov.t)/2);

% Make group per time of dm days
dm=14;
dcov.m=1:dm:366;

% g.day_doy = day(g.day,'g.day_doy');


% Compute empricial coavariance on a grid
dcov.D_emp = nan(size(dcov.D,1),size(dcov.D,1),numel(dcov.m));
dcov.T_emp = dcov.D_emp;
dcov.emp_grid_u=dcov.D_emp;
dcov.emp_grid_v=dcov.D_emp;
dcov.n=dcov.D_emp;

for i_d=1:numel(dcov.d)-1
    idd = Ddist>=dcov.d(i_d) & Ddist<dcov.d(i_d+1);
    [di,dj]=ind2sub(size(idd),find(idd));
    for i_t=1:numel(dcov.t)-1
        idt = Dtime>=dcov.t(i_t) & Dtime<dcov.t(i_t+1);
        [ti,tj]=ind2sub(size(idt),find(idt));

        for i_m=1:numel(dcov.m)
            idm = mod(g.day_doy(ti)-dcov.m(i_m),366-dm) <= dm & mod(g.day_doy(tj)-dcov.m(i_m),366-dm) <= dm;
            % idm = month(g.day(tj))==i_m;

            dcov.D_emp(i_t,i_d,i_m) = nanmean(Ddist(idd));
            dcov.T_emp(i_t,i_d,i_m) = nanmean(Dtime(idt));
            for i_uv =1:numel(uv)
                tmp1=victddt.(uv{i_uv})(ti(idm),di);
                tmp2=victddt.(uv{i_uv})(tj(idm),dj);
                tmp3=~isnan(tmp1)&~isnan(tmp2);

                dcov.(['emp_grid_' uv{i_uv}])(i_t,i_d,i_m) = mean(tmp1(tmp3) .* tmp2(tmp3));
            end
            % number are assumed to be same for u and v
            dcov.n(i_t,i_d,i_m) = sum(tmp3(:));

        end
    end
end

% i_uv=1;
% figure('position',[0 0 1000 400]);
% ha = tight_subplot(6,5,[.03 .01],[.01 .06],.01);
% for i_m=1:numel(dcov.m)
%     axes(ha(i_m));
%     surf(dcov.D_emp(:,:,i_m),dcov.T_emp(:,:,i_m),dcov.(['emp_grid_' uv{i_uv}])(:,:,i_m));zlim([0 1])
%     title(datestr(datetime(1,1,dcov.m(i_m)),'dd-mmm'));
% end
% xlabel('Distance [km]'); ylabel('Time [days]');

% Gneiting = @(dist,time,range_dist,range_time,delta,gamma,beta) 1./( (time./range_time).^(2.*delta) +1 ) .* exp(-(dist./range_dist).^(2.*gamma)./((time./range_time).^(2.*delta) +1).^(beta.*gamma) );
dcov.Gneiting_time = @(time,range_time,delta) 1./( (time./range_time).^(2.*delta) +1 );
dcov.Gneiting_dist = @(dist,range_dist,gamma) exp(-(dist./range_dist).^(2.*gamma) );
% dcov.Gneiting_fx = @(D,T,parm) parm(1)*(D==0 & T==0) + parm(2)*(D==0) + parm(3).*dcov.Gneiting_dist(D,parm(4),parm(7)).*dcov.Gneiting_time(T,parm(5),parm(6));
dcov.Gneiting_fx = @(D,T,parm) parm(1)*(D==0 & T==0) + parm(2).*dcov.Gneiting_dist(D,parm(3),parm(6)).*dcov.Gneiting_time(T,parm(4),parm(5));

parm_min=[0 0 0 .4 0 0]';A = [];b = [];Aeq=[1 1 0 0 0 0];
parm0 =[0 1 1000 1 .4 1];
for i_uv =1:numel(uv)
    dcov.(['parm_' uv{i_uv}]) = nan(numel(parm0),numel(dcov.m));

    for i_m=1:numel(dcov.m)
        max_cov = dcov.(['emp_grid_' uv{i_uv}])(1,1,i_m);
        parm_max=[.1 max_cov 3000 2 1 1 ]';
        beq=max_cov;
        rmse = @(parm) nansum(nansum( 1000*max(dcov.(['emp_grid_' uv{i_uv}])(:,:,i_m),0.01).*( (dcov.Gneiting_fx(dcov.D_emp(:,:,i_m),dcov.T_emp(:,:,i_m),parm) - dcov.(['emp_grid_' uv{i_uv}])(:,:,i_m)).^4 ) ));
        dcov.(['parm_' uv{i_uv}])(:,i_m) = fmincon(rmse, parm0, A, b, Aeq, beq, parm_min, parm_max, [], optimoptions('fmincon','Display','off'));
        parm0 = dcov.parm_u(:,i_m);
    end

    % Interpolate parameter
    dcov_m = dcov.m; dcov_parm = dcov.(['parm_' uv{i_uv}]);
    dcov.(['f_parm_' uv{i_uv}])= @(x) [interp1(dcov_m, dcov_parm(1,:), x) ;...
        interp1(dcov_m, dcov_parm(2,:), x) ;...
        interp1(dcov_m, dcov_parm(3,:), x) ;...
        interp1(dcov_m, dcov_parm(4,:), x) ;...
        interp1(dcov_m, dcov_parm(5,:), x) ;...
        interp1(dcov_m, dcov_parm(6,:), x) ];
end

% Display parameters of covariance
% fprintf(['nugget(0,0)\t nugget(0,:)\t var\t range distance[km]\t range time[day]\t shape distance (delta)\t shape time (gamma)\t separability (beta)\n%.3f\t\t %.3f\t\t %.3f\t %.3f\t\t %.3f\t\t\t %.3f\t\t\t %.3f\t\t\t %.3f\n%.3f\t\t %.3f\t\t %.3f\t %.3f\t\t %.3f\t\t\t %.3f\t\t\t %.3f\t\t\t %.3f\n%.3f\t\t %.3f\t\t %.3f\t %.3f\t\t %.3f\t\t\t %.3f\t\t\t %.3f\t\t\t %.3f\n%.3f\t\t %.3f\t\t %.3f\t %.3f\t\t %.3f\t\t\t %.3f\t\t\t %.3f\t\t\t %.3f'],dcov.parm)

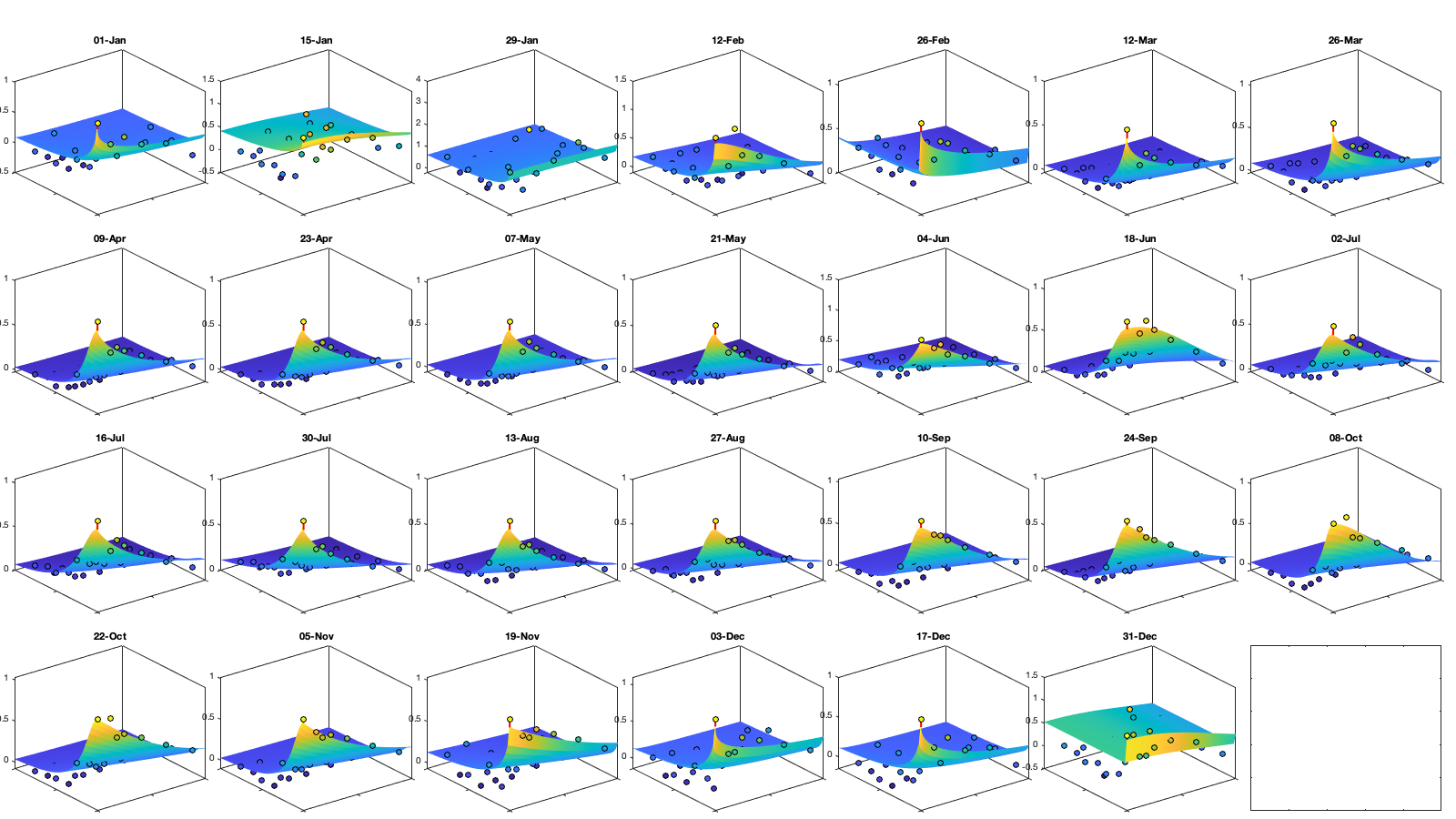

% Illustration of the fitted covariance function
[tmpD,tmpT] = meshgrid(dcov.d(1):1:dcov.d(end),dcov.t(1):0.1:dcov.t(end));

if plotit
    for i_uv =1:numel(uv)
        figure('position',[0 0 1600 900]);
        ha = tight_subplot(4,7,[.04 .01],[.01 .06],.01);
        for i_m=1:numel(dcov.m)
            axes(ha(i_m)); hold on; title(datestr(datetime(1,1,dcov.m(i_m)),'dd-mmm'));
            s=surf(tmpD,tmpT,dcov.Gneiting_fx(tmpD, tmpT,dcov.(['f_parm_' uv{i_uv}])(dcov.m(i_m)))); s.EdgeColor='none';
            % surf(cov.D_emp(:,:,i_m),cov.T_emp(:,:,i_m),cov.emp_grid(:,:,i_m));
            scatter3(reshape(dcov.D_emp(:,:,i_m),1,[]),reshape(dcov.T_emp(:,:,i_m),1,[]),reshape(dcov.(['emp_grid_' uv{i_uv}])(:,:,i_m),1,[]),[],reshape(dcov.(['emp_grid_' uv{i_uv}])(:,:,i_m),1,[]),'filled','MarkerEdgeColor','k');
            %xlabel('Distance [km]'); ylabel('Time [days]');
            view(3);
            plot3([0 0],[0 0],[dcov.(['parm_' uv{i_uv}])(2,i_m) sum(dcov.(['parm_' uv{i_uv}])(1:2,i_m))],'r', 'linewidth',2)
        end
    end

    for i_uv =1:numel(uv)
        tmp_parm = dcov.(['f_parm_' uv{i_uv}])(1:365);
        col=colororder;
        figure('position',[0 0 1400 900]);
        ha = tight_subplot(4,1,.01,[.05 .01],[.03 .01]);
        axes(ha(1)); bar(dcov.m,flipud(dcov.(['parm_' uv{i_uv}])(1:2,:))','stack'); hold on;
        plot(tmp_parm(2,:),'color',col(1,:)); plot(sum(tmp_parm(1:2,:)),'color',col(2,:));
        ylabel('Nugget'); legend('variance','D=0,T=0'); grid on; axis tight; xticks(dcov.m); xticklabels('');
        axes(ha(2)); plot(dcov.m,dcov.(['parm_' uv{i_uv}])(3,:),'o'); hold on; plot(tmp_parm(3,:))
        ylabel('Range distance (km)'); axis tight; grid on; xticks(dcov.m); xticklabels('');
        axes(ha(3)); plot(dcov.m,dcov.(['parm_' uv{i_uv}])(4,:),'o');  hold on; plot(tmp_parm(4,:))
        ylabel('Range time (day)'); axis tight; grid on; xticks(dcov.m); xticklabels('');
        axes(ha(4)); plot(dcov.m,dcov.(['parm_' uv{i_uv}])(5:6,:)','o');  hold on; plot(tmp_parm(5:6,:)')
        legend('shape distance','shape time'); grid on; axis tight;xticks(dcov.m); xticklabels('');
        xticklabels(datestr(datetime(1,1,dcov.m),'dd-mmm'))
    end
end

save

save('data/speed/inference-daily','dcov','victddt','victd_trend','doy_g','-v7.3')

---------- PART 4

Intra night scale trend

load('data/density/inference-trans','radar','g','thr_nnt')
load('data/speed/inference-trans.mat','vici','uv')

Transformation

% Anamorphosis for intra
for i_uv=1:numel(uv)
    [f,x] = ecdf(vici.(uv{i_uv})(:));
    transi.([uv{i_uv} '_axis']) = x(2:(numel(x)/10000):end);
    transi.([uv{i_uv} '_axis_t']) = norminv(f(2:(numel(x)/10000):end));
    victi.(uv{i_uv}) = interp1(transi.([uv{i_uv} '_axis']),transi.([uv{i_uv} '_axis_t']),vici.(uv{i_uv}),'pchip');
end

figure; ha=tight_subplot(2,2);
axes(ha(1)); histfit(vici.(uv{1})(:)); legend('u')
axes(ha(2)); histfit(vici.(uv{2})(:)); legend('v')
axes(ha(3)); histfit(victi.(uv{1})(:)); legend('Transformed u')
axes(ha(4)); histfit(victi.(uv{2})(:)); legend('Transformed v')

Detrend Mean

Check residual per month

if plotit
    i_uv=1;
    figure;
    ha = tight_subplot(4,3,[.03 .01],[.01 .03],.01);
    for i_m=1:12
        axes(ha(i_m)); hold on; title(datestr(datetime(1,i_m,1),'mmm'));
        borders('states','k');
        scatter(radar.lon,radar.lat,200,nanmean(victi.(uv{i_uv})(month(g.time)==i_m,:)),'o','filled')
        axis equal; axis([-125 -68 23 50]); caxis([-1 1])
    end
end

Detrend Variance

% Spatial
for i_uv=1:numel(uv)
    w = sum(~isnan(victi.(uv{i_uv})));
    victi_trend.(['sf_std_' uv{i_uv}]) = fit([radar.lon,radar.lat],std(victi.(uv{i_uv}),'omitnan')','lowess','weight',w);
end

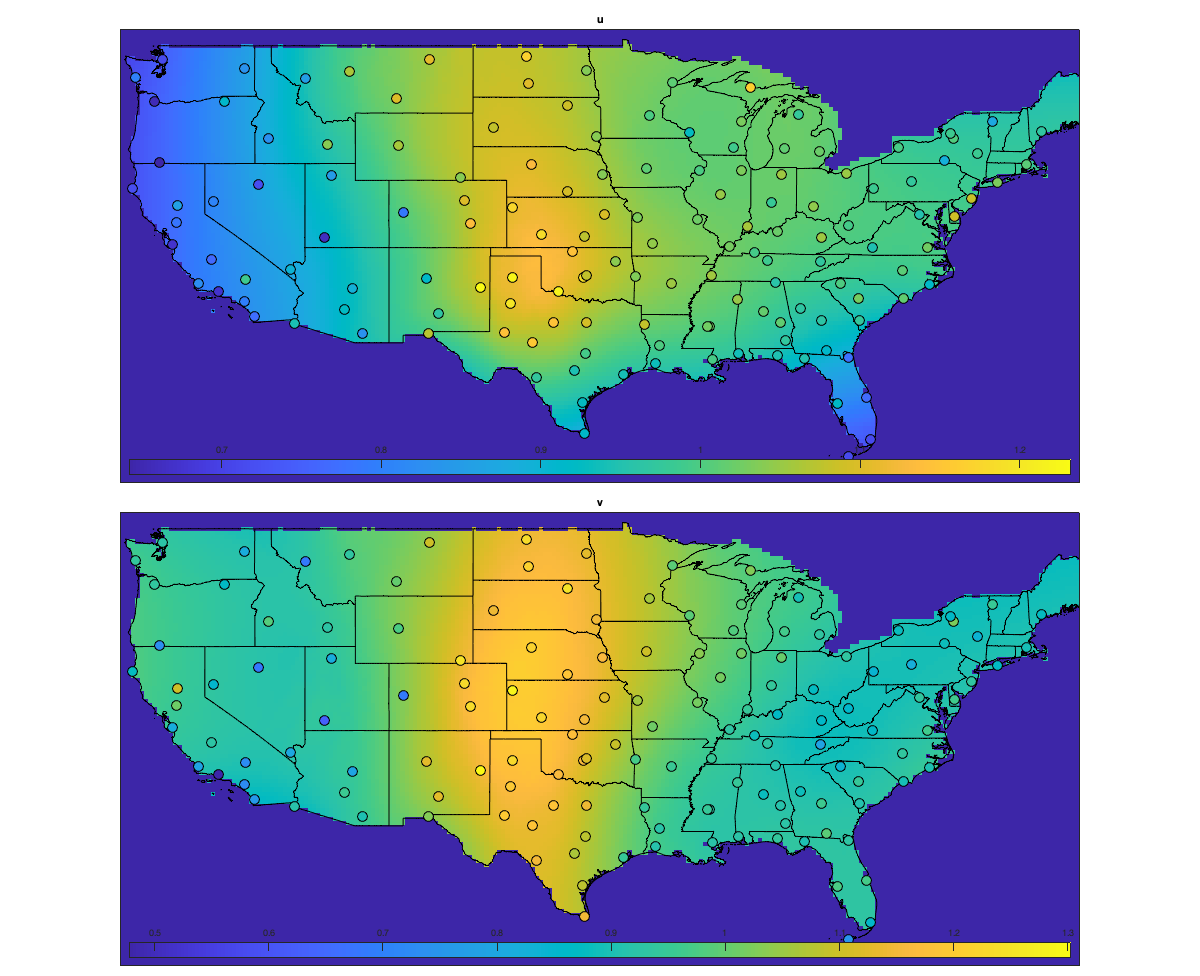

% Visualize the fit
if plotit
    figure('position',[0 0 1200 1200]);
    ha = tight_subplot(2,1,[.03 .01],[.01 .03],.01);
    for i_uv=1:numel(uv)
        axes(ha(i_uv))
        tmp = reshape(victi_trend.(['sf_std_' uv{i_uv}])([g.LON(:) g.LAT(:)]),size(g.LAT));
        tmp(g.mask_water)=nan;
        imagesc(g.lon,g.lat,tmp)
        borders('states','k');
        scatter(radar.lon,radar.lat,100,std(victi.(uv{i_uv}),'omitnan'),'o','filled','MarkerEdgeColor','k');
        colorbar('south'); axis equal; axis([-125 -68 23 50]); title(uv{i_uv}); set(gca,'ydir','normal'); xticks([]);  yticks([])
    end
end

% Compute the residual
for i_uv=1:numel(uv)
    victi1.(uv{i_uv}) = victi.(uv{i_uv}) ./ victi_trend.(['sf_std_' uv{i_uv}])([radar.lon,radar.lat])';
end

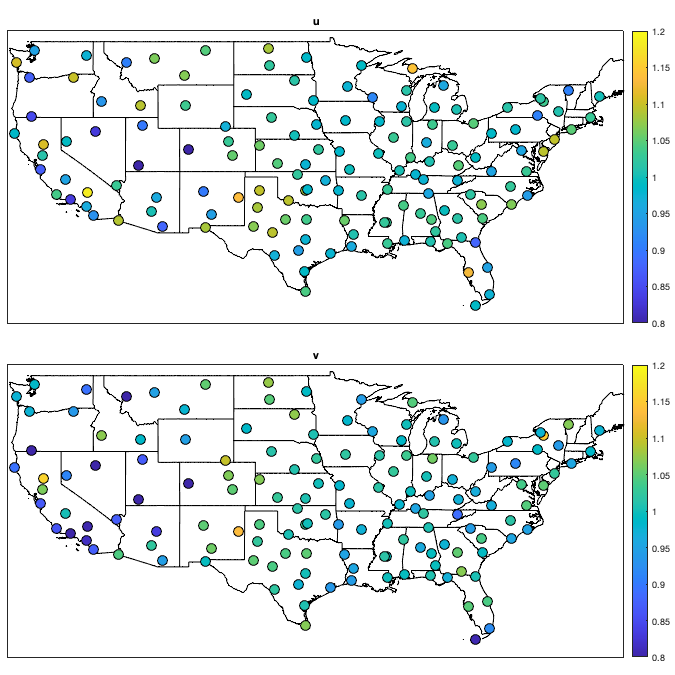

% Check residual
if plotit
    figure('position',[0 0 675 675]);
    ha = tight_subplot(2,1,[.03 .01],[.01 .03],.01);
    for i_uv=1:numel(uv)
        axes(ha(i_uv))
        borders('states','k');
        scatter(radar.lon,radar.lat,100,std(victi1.(uv{i_uv}),'omitnan'),'o','filled','MarkerEdgeColor','k');
        caxis([.8 1.2]); axis equal; axis([-125 -68 23 50]); title(uv{i_uv}); set(gca,'ydir','normal'); xticks([]);  yticks([]); colorbar;
    end
end


% Temporal
for i_uv=1:numel(uv)
    tmp = splitapply(@(x) std(x,[],'all','omitnan'),victi1.(uv{i_uv}),g.time_doy);
    tmp2 = movmean([tmp(end-50:end) ; tmp ; tmp(1:50)],30);
    victi_trend.(['t_std_' uv{i_uv}]) = tmp2(52:(end-50));
end

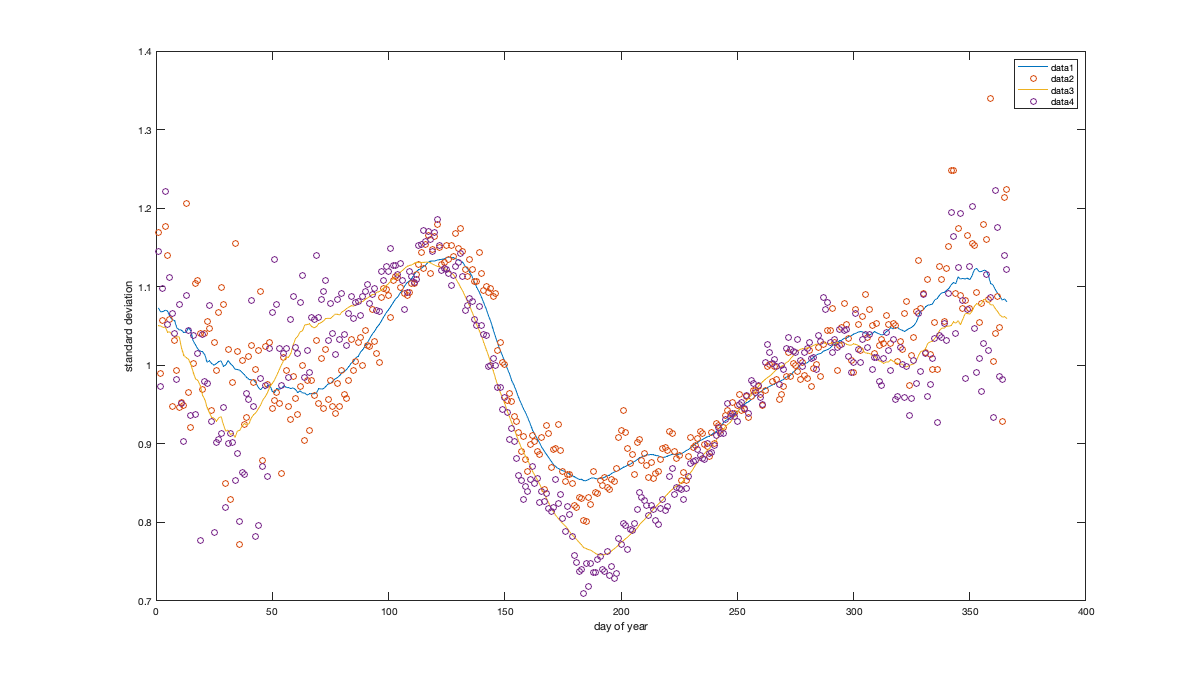

% Illustration
if plotit
    figure('position',[0 0 1200 675]); hold on;
    for i_uv=1:numel(uv)
        plot(victi_trend.(['t_std_' uv{i_uv}]));
        plot(splitapply(@(x) std(x,[],'all','omitnan'),victi1.(uv{i_uv}),g.time_doy),'o')
    end
    xlabel('day of year'); ylabel('standard deviation'); legend
end

% remove trend
for i_uv=1:numel(uv)
    victi2.(uv{i_uv}) = victi1.(uv{i_uv}) ./ victi_trend.(['t_std_' uv{i_uv}])(g.time_doy);
end

% figure('position',[0 0 1200 675]); hold on;
% for i_uv=1:numel(uv)
%     plot(splitapply(@(x) std(x,[],'all','omitnan'),victi2.(uv{i_uv}),g.time_doy),'o')
% end

victidt=victi2;

Covariance

Dtime=median(diff(datenum(g.time)));
Ddist=squareform(pdist([radar.lat radar.lon],@lldistkm));

icov.d=[0 1 150 200 300 500 750];
icov.t=0:Dtime:(2/24);

% figure; hold on; histogram(diff(NNT)); xline(icov.t)

[icov.D,icov.T]=meshgrid(icov.d(1:end-1)+diff(icov.d)/2,icov.t(1:end-1)+diff(icov.t)/2);

% Make group per time of dm days
dm=20;
icov.m=1:dm:366;

% g.day_doy = day(g.day,'g.day_doy');

% Compute empricial coavariance on a grid
icov.D_emp = nan(size(icov.D,1),size(icov.D,1),numel(icov.m));
icov.T_emp = icov.D_emp;
icov.emp_grid_u=icov.D_emp;
icov.emp_grid_v=icov.D_emp;
icov.n=icov.D_emp;

tic
tis = find(mean(~isnan(victi.u),2)>.5);
g_month = month(g.time);
for i_d=1:numel(icov.d)-1
    idd = Ddist>=icov.d(i_d) & Ddist<icov.d(i_d+1);
    [di,dj] = ind2sub(size(idd),find(idd));

    s=randsample(numel(di),min(numel(di),1000));
    di=di(s); dj=dj(s);

    for i_t=1:numel(icov.t)-1

        ti = find(tis(1:(end-i_t)));

        s=randsample(numel(ti),min(numel(ti),10000));
        ti=ti(s);

        tj = ti+i_t-1;

        for i_m=1:numel(icov.m)
            idm = mod(g.time_doy(ti)-icov.m(i_m),366-dm) <= dm;

            icov.D_emp(i_t,i_d,i_m) = mean(Ddist(idd),'omitnan');
            icov.T_emp(i_t,i_d,i_m) = (i_t-1)*Dtime;

            for i_uv =1:numel(uv)
                tmp1=victidt.(uv{i_uv})(ti(idm),di);
                tmp2=victidt.(uv{i_uv})(tj(idm),dj);
                tmp3=~isnan(tmp1)&~isnan(tmp2);

                icov.(['emp_grid_' uv{i_uv}])(i_t,i_d,i_m) = mean(tmp1(tmp3) .* tmp2(tmp3));
            end
            icov.n(i_t,i_d,i_m) = nansum(tmp3(:));
        end
    end
    % i_d
end
toc

Elapsed time is 3.951501 seconds.

i_uv=1; figure('position',[0 0 1000 400]); ha = tight_subplot(6,5,[.03 .01],[.01 .06],.01); for i_m=1:numel(icov.m) axes(ha(i_m)); surf(icov.D_emp(:,:,i_m),icov.T_emp(:,:,i_m),icov.(['emp_grid_' uv{i_uv}])(:,:,i_m));zlim([-.2 1]) title(datestr(datetime(1,1,icov.m(i_m)),'dd-mmm')); end xlabel('Distance [km]'); ylabel('Time [days]');

icov.Gneiting_time = @(time,range_time,delta) 1./( (time./range_time).^(2.*delta) +1 );
icov.Gneiting_dist = @(dist,range_dist,gamma) exp(-(dist./range_dist).^(2.*gamma) );
icov.Gneiting_fx = @(D,T,parm) parm(1)*(D==0 & T==0) + parm(2).*icov.Gneiting_dist(D,parm(3),parm(6)).*icov.Gneiting_time(T,parm(4),parm(5));

parm0 =[.1 .6 50 .05 1 0];
Aeq=[1 1 0 0 0 0];
parm_min=[0 0 200 0 0 0.5]';

for i_uv =1:numel(uv)
    icov.(['parm_' uv{i_uv}]) = nan(numel(parm0),numel(icov.m));
    for i_m=1:numel(icov.m)
        if icov.n(1,1,i_m)>0
            max_cov = icov.(['emp_grid_' uv{i_uv}])(1,1,i_m);
            parm_max=[0 max_cov 500 1 1 1]';
            A = [1 0 0 0 0 0];
            b = 0.1*(max_cov-max(icov.(['emp_grid_' uv{i_uv}])(1,2,i_m),icov.(['emp_grid_' uv{i_uv}])(2,1,i_m)));
            beq=max_cov;
            err1 = @(parm) icov.Gneiting_fx(icov.D_emp(:,:,i_m),icov.T_emp(:,:,i_m),parm) - icov.(['emp_grid_' uv{i_uv}])(:,:,i_m);
            err2 = @(parm) sum( 1000*max(icov.(['emp_grid_' uv{i_uv}])(:,:,i_m),0.01).*( err1(parm).^4 ) ,'all','omitnan');
            rmse = @(parm) nansum(nansum( 1000*max(icov.(['emp_grid_' uv{i_uv}])(:,:,i_m),0.01).*( (icov.Gneiting_fx(icov.D_emp(:,:,i_m),icov.T_emp(:,:,i_m),parm) - icov.(['emp_grid_' uv{i_uv}])(:,:,i_m)).^4 ) ));
            icov.(['parm_' uv{i_uv}])(:,i_m) = fmincon(err2, parm0, A, b, Aeq, beq, parm_min, parm_max, [], optimoptions('fmincon','Display','off'));
            parm0 = icov.(['parm_' uv{i_uv}])(:,i_m);
        end
    end

    tmp = [icov.(['parm_' uv{i_uv}])(:,end-4:end) icov.(['parm_' uv{i_uv}]) icov.(['parm_' uv{i_uv}])(:,1:5)];
    icov_m = icov.m; icov_parm = tmp(:,6:end-5);
    icov.(['f_parm_' uv{i_uv}]) = @(x) [...
        interp1(icov_m, icov_parm(1,:), x, 'pchip') ;...
        interp1(icov_m, icov_parm(2,:), x, 'pchip') ;...
        interp1(icov_m, icov_parm(3,:), x, 'pchip') ;...
        interp1(icov_m, icov_parm(4,:), x, 'pchip') ;...
        interp1(icov_m, icov_parm(5,:), x, 'pchip') ;...
        interp1(icov_m, icov_parm(6,:), x, 'pchip') ];
end

% Display parameters of covariance
% fprintf(['nugget(0,0)\t nugget(0,:)\t var\t range distance[km]\t range time[day]\t shape distance (delta)\t shape time (gamma)\t separability (beta)\n%.3f\t\t %.3f\t\t %.3f\t %.3f\t\t %.3f\t\t\t %.3f\t\t\t %.3f\t\t\t %.3f\n%.3f\t\t %.3f\t\t %.3f\t %.3f\t\t %.3f\t\t\t %.3f\t\t\t %.3f\t\t\t %.3f\n%.3f\t\t %.3f\t\t %.3f\t %.3f\t\t %.3f\t\t\t %.3f\t\t\t %.3f\t\t\t %.3f\n%.3f\t\t %.3f\t\t %.3f\t %.3f\t\t %.3f\t\t\t %.3f\t\t\t %.3f\t\t\t %.3f'],icov.parm)

if plotit
    % Illustration of the fitted covariance function
    [tmpD,tmpT] = meshgrid(icov.d(1):1:icov.d(end),icov.t(1):0.01:icov.t(end));

    for i_uv =1:numel(uv)
        figure('position',[0 0 1600 900]);
        tiledlayout('flow','TileSpacing','tight','Padding','tight')
        for i_m=1:numel(icov.m)
            nexttile; hold on; title(datestr(datetime(1,1,icov.m(i_m)),'dd-mmm'));
            s=surf(tmpD,tmpT,icov.Gneiting_fx(tmpD, tmpT,icov.(['f_parm_' uv{i_uv}])(icov.m(i_m)))); s.EdgeColor='none';
            % surf(cov.D_emp(:,:,i_m),cov.T_emp(:,:,i_m),cov.emp_grid(:,:,i_m));
            scatter3(reshape(icov.D_emp(:,:,i_m),1,[]),reshape(icov.T_emp(:,:,i_m),1,[]),reshape(icov.(['emp_grid_' uv{i_uv}])(:,:,i_m),1,[]),[],reshape(icov.(['emp_grid_' uv{i_uv}])(:,:,i_m),1,[]),'filled','MarkerEdgeColor','k');
            %xlabel('Distance [km]'); ylabel('Time [days]');
            view(3);
            plot3([0 0],[0 0],[icov.(['parm_' uv{i_uv}])(2,i_m) sum(icov.(['parm_' uv{i_uv}])(1:2,i_m))],'r', 'linewidth',2)
        end
    end

    for i_uv =1:numel(uv)
        tmp_parm = icov.(['f_parm_' uv{i_uv}])(1:365);
        col=colororder;
        figure('position',[0 0 1400 900]);
        ha = tight_subplot(4,1,.01,[.05 .01],[.03 .01]);
        axes(ha(1)); bar(icov.m,flipud(icov.(['parm_' uv{i_uv}])(1:2,:))','stack'); hold on;
        plot(tmp_parm(2,:),'color',col(1,:)); plot(sum(tmp_parm(1:2,:)),'color',col(2,:));
        ylabel('Nugget'); legend('variance','D=0,T=0'); grid on; axis tight; xticks(icov.m); xticklabels('');
        axes(ha(2)); plot(icov.m,icov.(['parm_' uv{i_uv}])(3,:),'o'); hold on; plot(tmp_parm(3,:))
        ylabel('Range distance (km)'); axis tight; grid on; xticks(icov.m); xticklabels('');
        axes(ha(3)); plot(icov.m,icov.(['parm_' uv{i_uv}])(4,:),'o');  hold on; plot(tmp_parm(4,:))
        ylabel('Range time (day)'); axis tight; grid on; xticks(icov.m); xticklabels('');
        axes(ha(4)); plot(icov.m,icov.(['parm_' uv{i_uv}])(5:6,:)','o');  hold on; plot(tmp_parm(5:6,:)')
        legend('shape distance','shape time'); grid on; axis tight;xticks(icov.m); xticklabels('');
        xticklabels(datestr(datetime(1,1,icov.m),'dd-mmm'))
    end
end

save

save('data/speed/inference-intra','icov','victidt','victi_trend','transi','-v7.3')

Contents

Inference of the daily and intra-night model of flight speed.

---------- PART 1

Load data

Assess missing value and remove un-reliable data

Figure of data kept

Check speed norm with year and month.

2D Grubb's test to removal outliar

Outliar intra-night: NOT USED

Export daily and intra-night in u and v

Save

---------- PART 2:

Step 1: Mean

Step 2: Variance

Save

---------- PART 3

Fit covariance function

save

---------- PART 4

Transformation

Detrend Mean

Detrend Variance

Covariance

save
